Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7D7A1009NA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: ST650 V3
Product Model: 7D7A1009NA

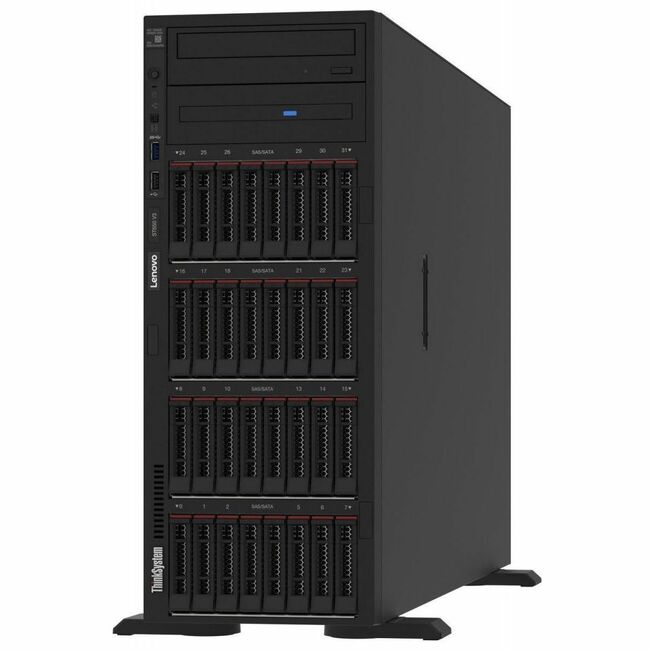

Product Name: ThinkSystem ST650 V3 7D7A1009NA Server
Marketing Information:
The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Generation: 4th Gen
Processor Model: 4410T
Processor Core: Deca-core (10 Core)
Processor Speed: 2.70 GHz
Cache: 26.25 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C741
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 4 TB
Memory Technology: TruDDR5
Memory Clock Speed: 4.80 GHz
Total Number of Memory Slots: 32
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Registered (Buffered)
Controllers
Controller Type: Serial ATA12Gb/s SASController Model: 9350-8i
RAID Supported: Yes
I/O Expansions
Number of Total Expansion Bays: 10
Number of External 5.25" Bays: 2
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 9
PCI Express Details: Up to nine PCIe slots, five of which are PCIe 5.0.
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: XCC Platinum
Operating System
Operating System Supported: Windows Server 2019Windows Server 2022Red Hat Enterprise Linux 8.6Red Hat Enterprise Linux 8.7Red Hat Enterprise Linux 9.0Red Hat Enterprise Linux 9.1SUSE Linux Enterprise Server 15 SP4Ubuntu 22.04 LTS x64Power Description
Input Voltage: 120 V AC230 V ACNumber of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13
Maximum Power Supply Wattage: 750 W
Hot Swappable Power Supply: Yes
Miscellaneous
Package Contents:
- ThinkSystem ST650 V3 7D7A1009NA Server
- Power Cord
Security Features:
- Power-on password
- Administrator's password
- Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR).
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
China Environmental Labeling Program (CELP)Electronic Product Environmental Assessment Tool Bronze (EPEAT Bronze)GREENGUARDEnergy Efficiency Certification:
China Energy Conservation Program (CECP)ENERGY STAR 3.0Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Form Factor: Tower
Rack Height: 4U
Height: 18.19" (462 mm)
Width: 6.89" (175 mm)
Depth: 28.90" (734 mm)
Weight (Approximate): 86.20 lb (39100 g)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
