Product ID: 1077790204

Category:

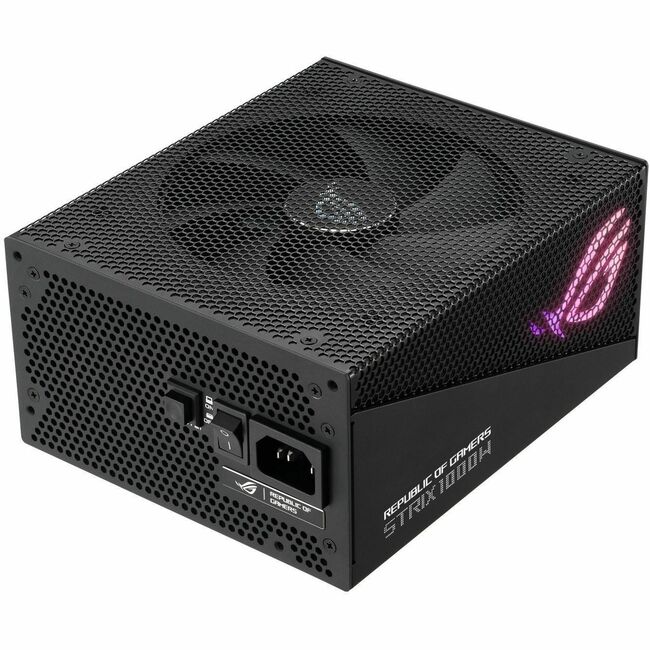

Asus ROG Strix 1000W Power Supply


Asus ROG Strix 1000W Power Supply

Price (CDN): $305.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $305.95

Quantity:




Description:
General Information
Manufacturer: ASUS Computer International
Manufacturer Part Number: ROG-STRIX-1000G-AURA-GAM
Brand Name: Asus ROG
Product Line: ROG Strix
Product Name: ROG Strix 1000W Power Supply
Marketing Information:

ROG Strix Gold Aura Edition Exude Power

  • Aluminum Case
  • Axial-tech Fan
  • PCIe Gen 5.0 Ready
  • Cybenetics Lambda A+
  • 80 PLUS Gold
  • Future Ready
  • Aura Sync
  • 10-Year Warranty

The ROG Strix 1000W Gold Aura combines premium components, superior cooling and captivating RGB illumination to create a formidable force. With huge ROG heatsinks, a high-efficiency Axial-tech fan, and a striking aluminum finish, it's a pumped-and-primed PSU powerhouse for your next gaming rig.

COOLING | Aluminum Case | Built to run cool

The ROG Strix 1000W Gold Aura Edition is encased in a strong, sleek aluminum chassis that also acts as a heatsink for the internal power transformer, further helping to reduce temperatures and minimize noise.

ROG Heatsinks | Cool under pressure

ROG heatsinks facilitate lower temperatures, longer component lifespan, and extended 0dB operation.

Axial-tech Fan Design | Better, faster, stronger

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure. For ROG Strix Aura Edition PSUs, we've scaled that design to 135mm so it keeps things cool at low RPMs while producing less noise.

Dual Ball Fan Bearings | 2x longer lifespan

The fan impeller spins on a dual ball bearing setup that will last up to twice as long as a sleeve bearing design.

0dB Technology | Quiet intelligence

To reduce noise output, the PWM-controlled fan shuts off entirely when the PSU load is 60% or below.

ENGINEERING | 80 Plus Gold Certification | Heart of gold

Top-end Japanese capacitors ensure efficient operation and have helped the ROG Strix Aura Edition PSUs earn an 80 PLUS Gold certification. The increased efficiency also results in less heat, reducing noise and increasing reliability.

Lambda A+ Certification | Quietly deviant

On average, ROG Strix 1000W Gold Aura Edition emits less than 20 dB of noise - earning a coveted Cybenetics Lambda A+ certification.

ATX 3.0 Compatible | Step into the future

The latest power specification updates have landed. ATX 3.0 ushers in tighter voltage and current regulation guidelines for next-gen hardware - and ROG Strix Aura Edition steps ahead of the curve by being fully compliant. A 16-pin PCIe cable ripe for piping up to 600W of power to PCIe Gen 5.0 graphics cards is bundled with the PSU, readying your build for the next-gen.

EXPERIENCE | Aura Sync | Outshine the competition

Addressable RGB lighting is built right in to the ROG Strix 1000W Gold Aura Edition, so it's all set to integrate with the Aura Sync illumination ecosystem - adding aesthetic style to raw power.

10-year Warranty | A decade of power

We're so confident about the reliability of the ROG Strix 1000W Gold Aura Edition that we back it with a 10-year warranty.


Product Type: Power Supply
Technical Information
Specification Compliance:
  • ATX12V
  • ATX 3.0
  • Power Factor Correction (PFC): Active
    Number of Fans: 1
    Fan Diameter: 135 mm
    Protection Type:
  • Over Power
  • Over Voltage
  • Under Voltage
  • Short Circuit
  • Over Current
  • Over Temperature
  • Power Description
    Input Voltage:
  • 120 V AC
  • 230 V AC
  • Number of +12V Rails: 1
    Output Voltage:
  • 3.3 V DC
  • 5 V DC
  • 12 V DC
  • -12 V DC
  • 5 V SB
  • Output Voltage Detail:
  • 3.3 V DC @ 22 A
  • 5 V DC @ 22 A
  • 12 V DC @ 83.3 A
  • -12 V DC @ 0.3 A
  • 5 V SB @ 3 A
  • Output Current:
  • 22 A
  • 83.30 A
  • 300 mA
  • 3 A
  • Output Power: 1 kW
    Interfaces/Ports
    Number of SATA Power Connectors: 5
    PCI Express Connector: Yes
    Number of (6+2 pin) PCI Express Power Connectors: 4
    Number of (4+4 pin) CPU Power Connectors: 2
    Physical Characteristics
    Color Family: Black
    Product Color: Black
    Form Factor: Internal
    Height: 7.09" (180 mm)
    Width: 5.91" (150 mm)
    Depth: 3.39" (86 mm)
    Weight (Approximate): 3.03 kg
    Miscellaneous
    Package Contents:
    • ROG Strix 1000W Power Supply
    • 1 x Power Cord
    • 1 x Motherboard Power Cable (600mm)
    • 2 x CPU Cable (650mm)
    • 1 x PCI-E Gen 5 16-pin Cable (675mm)
    • 2 x PCI-E 1-to-1 Cable (675mm)
    • 1 x PCI-E (16-pin to 8-pin-8-pin) Cable (675mm)
    • 1 x SATA 1-to-2 Cable (400+120mm)
    • 1 x SATA 1-to-3 Cable (400+120+120mm)
    • 1 x Peripheral 1-to-4 Cable (400+150+150+150mm)
    • 1 x Addressable RGB Cable (800mm)
    • 1 x User Manual

    Energy Efficiency Certification: 80 Plus Gold
    Environmental Compliance: Restriction of Hazardous Substances (RoHS)
    Warranty
    Limited Warranty: 10 Year
