Description:
General Information
Manufacturer: Vivotek, Inc
Manufacturer Part Number: FD9391EHTVV2
Brand Name: Vivotek
Product Series: S
Product Model: FD9391-EHTV-v2

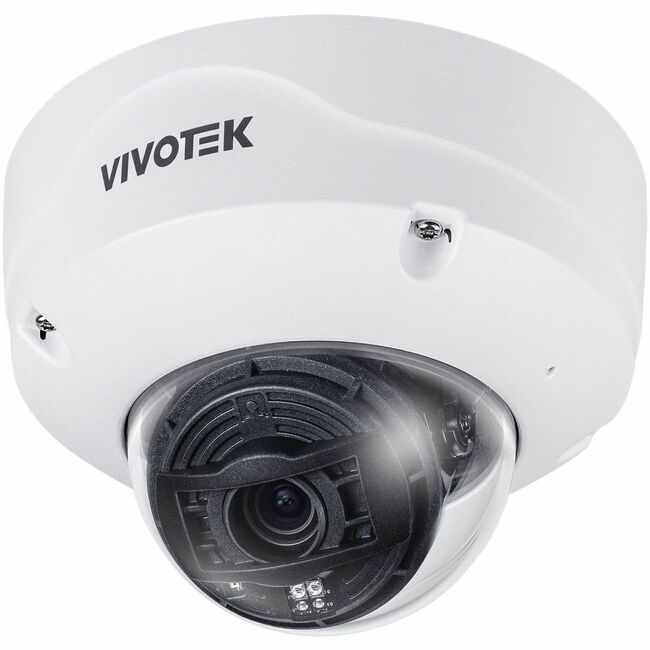

Product Name: Fixed Dome Network Camera
Marketing Information:
VIVOTEK FD9391-EHTV-v2 is a newly revamped outdoor fixed dome network camera that delivers 3840x2160 (4K/8MP) resolution at up to 30 fps. This well-designed, outdoor-ready camera features a built-in microphone, I/O functionality, the most up to date VIVOTEK SNV, WDR Pro, and Smart IR III technology to deliver clear image quality in both low light and high contrast environments. It also offers a variety of built-in cybersecurity capabilities and AI-powered video analytics with IP66, IP67, IP6K9K, IK10+, NEMA 4X and wide temperature range from -40°C to 60°C without heaters making it ideal for wide-ranging outdoor surveillance scenarios.
Installation-friendly, Budget-friendly
The installation-friendly mechanical design has made installation easier and more hassle-free than ever. The camera's modular design means that it can be installed in only 3 simple steps, saving both time and money, and allowing the user to focus attention on service and upgrades. With wireless access via the supported proprietary Wi-Fi dongle, the view angle can be easily adjusted during installation. Making the camera even more versatile, it can operate without the need for heaters at a range of temperatures between -50 °C to 60 °C (-58 °F to 140 °F) and thus is more energy efficient in all conditions.
Protect Your Digital Privacy and Assets
Harmonizing the camera with various built-in cybersecurity capabilities, VIVOTEK promises to keep your data safe and secure. Signed firmware, secure boot and Trend Micro IoT Security ensure only the trusted firmware with VIVOTEK digital signature can be installed, protect the system from attacks or infections by malicious unauthenticated code every time you boot up and provide multi-layer protection with the latest signature upgrades.
Lightning-fast search speed
Deep Search fully utilizes the data captured by Vision Object Analytics to bring precise and immediate search result. Experience the power of Deep Search in VIVOTEK's network video recording, VAST Security Station, and VORTEX VSaaS.
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: 4K
Night Vision: Yes
Night Vision Distance: 164.04 ft (50 m)
Night Vision Type: Infrared
Number of IR LEDs: 4
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/1.8"
Color Supported: Color
Field of View: 110° ~ 43° (Horizontal) 57° ~ 24° (Vertical) 133° ~ 49° (Diagonal)
Effective Camera Resolution: 8 Megapixel
Video
Video Formats: H.265H.264MJPEGMaximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 30 fps
Lens
Lens Type: Varifocal
Minimum Focal Length: 4.4 mm
Maximum Focal Length: 10.2 mm
Lens Included: Yes
Maximum Aperture: f/1.38
Optical Zoom: 2.3x
Exposure
Shortest Shutter Speed: 1/100000 Second
Longest Shutter Speed: 1 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: 802.1XARPBonjourCIFS/SMBDDNSDHCPDNSFTPSFTPHTTPSHTTPICMPIGMPv1/v2/v3IPv4IPv6NTPPPPoEQoSCOSDSCPRTP/RTSP/RTCPSMTPSNMPSSLTCP/IPTLSUDPUPnPStorage
Storage Type: Memory Card
Interfaces/Ports
USB: Yes
Network (RJ-45): Yes
Power Description
Input Voltage: 24 V AC12 V DCPower Source Type: PoEACDCPhysical Characteristics
Form Factor: Dome
Durability: Water ProofWeather ProofVandal ProofDiameter: 6.85" (174 mm)
Weight (Approximate): 1.39 kg
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Miscellaneous
Features:
Audio DetectionVehicle DetectionHuman DetectionBack Light Compensation (BLC)Highlight Compensation (HLC)Wide Dynamic RangeDay/NightBuilt-in MicrophoneBuilt-in Infrared IlluminatorFace DetectionIndoor/Outdoor: Outdoor
Package Contents:
- Fixed Dome Network Camera
- Quick installation guide
- product labels
- alignment sticker
- L-shaped wrench
- screw pack
- waterproof accessory pack
- sunshield
- conduit bracket
- I/O cable
Impact Protection Rating: IK10+
Ingress Protection Rating:
IP66IP67IP6K9K Warranty
Limited Warranty: 36 Month
