Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 12N8GAR1US
Brand Name: Lenovo
Product Line: ThinkCentre
Product Model: TIO22GEN5

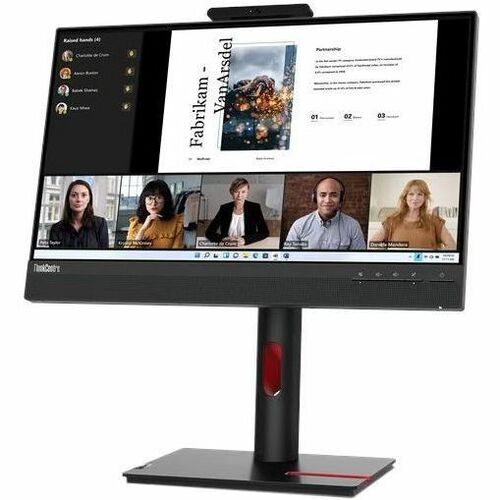

Product Name: ThinkCentre TIO22GEN5 Widescreen LED Monitor
Marketing Information:
The ThinkCentre Tiny-In-One (TIO) 22 Gen 5 is an all-rounder with its 21.5-inch FHD In-Plane Switching panel which provides an immersive video calling experience. This Modular design of the monitor makes it compatible with Lenovo's range of high-performance ThinkCentre and ThinkStation Tiny Computers from 4th Gen, and gives a complete working experience when paired with its VoIP features. This can be installed on your monitor effortlessly and housed on the back of the monitor in a dedicated slot, making your desk cable-free. The classic installation mechanism ensures you have a consistent experience, allowing you to easily and quickly mount last-gen Tiny PCs on the monitor. Designed to be a powerful VoIP machine, this monitor is enhanced with features that make video conferencing a great experience. During online meetings, the 1080p RGB webcam and integrated noise-cancellation microphone produce exceptionally clear audio and video. TIO 22 Gen 5 also has a Smart Traffic Light indicator that alerts everyone in the vicinity to an ongoing meeting, letting you remain focused. If remaining focused and staying in the conversation is of importance to you, then the two built-in 3W speakers ensure that the audio from meetings is always clear and crisp. Easily manage VoIP calls with one toggle to change the volume or mute the call using the dedicated VoIP buttons. Your privacy is in your hands with the ThinkShutter, which allows you to cover the camera when not in its use. Lenovo takes care of the environment with green packaging and optional CO2 offset service for zero to minimal carbon emission. In addition to Tiny PCs, this monitor can also be easily connected to other notebooks, towers using the HDMI and DP ports, and to other peripherals using the USB ports. With the ThinkColour software1, customize the screen's attributes, create screen profiles, and easily switch between them as per your work preference. Protects your eyes from harmful blue light without any color distortion during long hours of screen time with the Natural Low Blue Light technology. The TIO 22 Gen 5 is the perfect option if you're looking for a clean and clutter-free setup to maximize productivity and enjoy an efficient, all-in-one experience.
Top Features
- 21.5" FHD (1920 x 1090) 3-side Near-edgeless display;
- Eye-caring display with Natural Low Blue Light;
- Quick installation with ThinkCentre Tiny PC;
- Efficient collaboration with built-in camera, microphne and speakers
Product Type: LED Monitor
Technical Information
Number of Screens: 1
Screen Size Class: 22"
Viewable Screen Size: 21.5"
Screen Mode: Full HD
Panel Technology: In-plane Switching (IPS) Technology
Response Time: 4 ms
Response Time Details: 4ms Extreme Mode
Aspect Ratio: 16:9
Pixel Pitch: 0.24800 mm x 0.24800 mm
Horizontal Viewing Angle: 178°
Vertical Viewing Angle: 178°
Backlight Technology: WLED
Features: sRGBAnti-glareLow Blue LightEye Comfort TechnologyEyesafe CertifiedHorizontal Frequency: 30 kHz to 83 kHz
Vertical Frequency: 30 Hz to 75 Hz
Stand Adjustments: TiltSwivelPivotHeightCamera Resolution: 1080 Megapixel
Video
Maximum Resolution: 1920 x 1080
Standard Refresh Rate: 75 Hz
Color Supported: 16.7 Million Colors
Native Contrast Ratio: 1,000:1
Brightness: 250 cd/m²
Color Gamut: 99% sRGB
Audio
Number of Speakers: 2
Speakers: Yes
Interfaces/Ports
Network (RJ-45): No
HDMI: Yes
USB: Yes
DisplayPort: Yes
Total Number of HDMI Ports: 1
Number of DisplayPorts: 1
Number of USB Ports: 2
Built-in Devices
Built-in Devices: KVM Switch
Webcam: Yes
Power Description
Operating Power Consumption: 33 W
Physical Characteristics
VESA Mount Compatible: Yes
Color Family: Black
Color: Black
Height: 13.35" (339.10 mm)
Width: 19.26" (489.30 mm)
Depth: 2.87" (72.80 mm)
Height with Stand: 20.17" (512.30 mm)
Width with Stand: 19.26" (489.30 mm)
Depth with Stand: 8.17" (207.60 mm)
Weight (Approximate): 7.05 lb (3200 g)
Weight with Stand (Approximate): 12.13 lb (5500 g)
Miscellaneous
Package Contents:
- ThinkCentre TIO22GEN5 Widescreen LED Monitor
- Stand
- 1 x Power cable (1 m);
- 1 x Power adaptor (90W);
- Quick setup guide
Energy Star: Yes
TCO Certified: Yes
Environmentally Friendly: Yes
Environmental Certification:
Electronic Product Environmental Assessment Tool Gold (EPEAT Gold)TCO Certified 9.0TCO Certified Edge Displays 2.0Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
