ATS quality computers

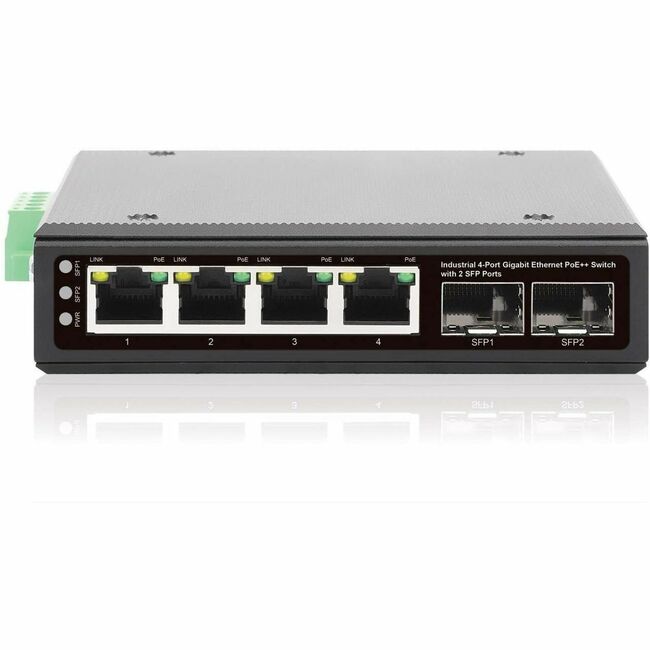

Hardened PoE Switch - Industrial 6-Port Gigabit PoE++ Switch with DIN Rail Mount - unmanaged 802.3bt Power over Ethernet connectivity for harsh environments

The Industrial 4-Port Gigabit Ethernet PoE++ Switch with 2 SFP Ports from Intellinet Network Solutions was designed to give you the network connections and device power you need in places that are less than calm or temperate. With a rugged IP40-rated metal case, the switch operates reliably and quietly, even in extreme temperatures that range from -20 - 75°C (-4 - 167°F). In combination with its DIN-rail mounting option and two safe, redundant DC power inputs and plenty of other safety features, this switch is ideal for IoT applications in Industry 4.0 and more.

Ultra-high 4PPoE output of 95 W per port paired with a large Power Budget and Gigabit Speeds

Featuring four auto-sensing 10/100/1000 Mbps RJ45 Gigabit Ethernet ports, this unmanaged switch offers plenty of performance for the devices in your network. Two small form-factor pluggable (SFP) GBIC module slots provide fiber connectivity for greater distances. The switch features a power budget of 240 W and can distribute a full 95 W (per the IEEE 802.3bt standard) to an RJ45 port while being downwards compatible with IEEE 802.3at/af. The output power rating up to 95 watts is enough for even very power-hungry PoE++ devices like motorized PTZ cameras, thin clients, point-of-sale systems, lighting controllers and digital signage applications.

Safe protection for your expensive network equipment

The auto-sensing technology of this PoE Switch ensures that your products are protected from power problems like short circuits (short GND), current overloads and high voltages. Port surge protection up to 6 kV and ESD protection up to 15 kV make its safety complete.

• Provides up to four PoE network devices with power and data
• Power over Ethernet with output up to 95 watts per port
• PoE power budget of 240 watts (depending on the power supply used)
• Two small form-factor pluggable (SFP) GBIC module slots
• IP40 slim-type metal housing to withstand harsh industrial conditions
• Suitable for extreme operating temperatures of -20 to 75ºC (-4 to 167ºF)
• Option for DIN-rail installation
• 10/100/1000 auto-sensing ports that automatically detect optimal network speeds
• Compatible with IEEE 802.3bt/at/af-compliant powered devices (PD) such as network cameras, wireless access points, VoIP phones and more
• Two redundant DC inputs (48 - 57 V) with I/O terminal block
• ESD protection up to 15 kV (air) and 8 kV (contact)
• Port surge protection up to 6 kV
• Grounding point to protect equipment from external electrical surges

• Industrial 4-Port Gigabit Ethernet PoE++ Switch with 2 SFP Ports
• DIN-rail mount bracket
• Instructions
