General Information

---

Manufacturer: Zebra Technologies Corporation
Manufacturer Part Number: ZD6AH22-T01E00EZ
Brand Name: Zebra
Product Series: ZD600
Product Model: ZD611t-HC

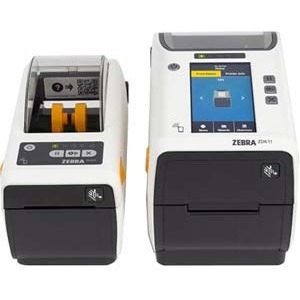

Product Name: ZD611t-HC Thermal Transfer Printer
Marketing Information:

Invest in the best with Zebra's premium 2-inch compact desktop printers, made for healthcare

When it comes to healthcare, you need premium, superior printing capabilities that you can rely on for years of outstanding performance. Zebra's new 2-inch ZD611-HC desktop printers have all the features your workflows require, such as next-generation technology, disinfectant-ready and UV-resistant plastics and a medical-grade power supply for added safety. They're easy to setup, operate and maintain thanks to Zebra's Print DNA software suite and the printers' new architecture that provides more processing power and enhanced security. Change media quickly with the new media handling design and add capabilities with field-installable options. Connect your way and incorporate wireless capabilities with the optional kit. Building on the proven ZD600 Series, they're ready to perform flawlessly for years to come.

Your Future Printing Starts Here | Technology for Today, Innovation for Tomorrow
Technology is constantly advancing and so will ZD611-HC printers. They're engineered to power future printing at the highest level with an innovative architecture that can perform more operations simultaneously and evolve with emerging technology.

Expect the Best | Premium Printing Performance

Rely on the ZD611-HC to help you power through - day after day. From outstanding print quality to portability for application flexibility to emerging technology to field-installable options, the ZD611-HC stands apart. Available in direct thermal, thermal transfer and linerless models, the ZD611-HC supports a wide variety of use cases.

Purpose-built Healthcare Design | Easy to Sanitize and Safe to Power

Disinfectant-ready plastics, UV-resistant housing and a sealed-button interface make the ZD611-HC easy to clean and sanitize, which helps prevent the spread of infections in hospitals and clinics. The medical-grade power supply is IEC 60601-1 compliant for use in any healthcare facility.

Operate with Ease | Simple to Setup, Easy to Maintain

Backed by Zebra's innovative Print DNA software suite, ZD611-HC printers are incredibly simple to operate. Deploy them anywhere with setup tools, wizards and emulation capabilities. The intuitive user interface requires minimal training, while remote management capabilities and built-in security mean your infrastructure is protected from cyberattacks.

Change Media Easily

Color-coded touch points and a new media-handling design guide you through speedy media changes to keep printers operational and workers on task. Replace ribbon intuitively and quickly with less mess, hassle and training time - and fewer calls into IT.

Product Type: Thermal Transfer Printer

Technical Information

---

Recommended Use: Label Print
Print Color Capability: Monochrome
Maximum Mono Print Speed: 7.99 in/s (203 mm/s)
Maximum Print Resolution (dpi): 203
Maximum Print Width: 2.20" (56 mm)
Barcode Symbology Supported:

Code 39

Code 11

Code 128

ISBT-128

Code 93

Interleaved 2 of 5

UPC-A

UPC-E

UPC-A with 2 and 5 Add-on

UPC-E with EAN 2 or 5 Digit Extension

EAN-13

EAN-8

EAN-13 With 2 and 5 Digit Extension

EAN-8 With 2 or 5 Digit Extension

POSTNET

Plessey

Standard 2 of 5

Industrial 2 of 5

LOGMARS

MSI

Codabar

Planet Code

Codablock

PDF417

Code 49

Data Matrix

Maxi Code

QR Code

Micro PDF

AZTEC

Connectivity Technology: Wired
Real Time Clock: Yes
Peel Facility: Yes
Application/Usage: Desktop
Features:

LCD Display

Dual Wall Frame

Compact

Dispenser

Memory

---

Standard Memory: 256 MB

Interfaces/Ports

---

USB Host: Yes
USB: Yes

Network & Communication

---

Ethernet: Yes
Ethernet Technology: Fast Ethernet
Bluetooth: Yes

Display & Graphics

---

Display Screen: Yes
Screen Size: 4.3"
Display Screen Type: LCD

Media Types & Handling

---

Media Type:

Label

Fanfold

Gap

Notch

Roll Fed

Die-cut Label

Continuous Label

Tag Stock

Continuous Receipt

Wristband

Media Sensor:

Moveable Reflective/Black Mark Sensor

Multi-position Transmissive/Gap Sensor

Media Thickness: 7.5 mil (0.1905 mm)
Maximum Roll Diameter: 5" (127 mm)
Maximum Label Width: 2.25" (57.15 mm)
Maximum Label Length: 39" (990.60 mm)

Fonts & Emulation

---

Language Emulation:

ZPL II

EPL2

XML

ZPL

EZPL

EPL

ZBI

Software

---

Operating System Supported:

Link-OS

Power Description

---

Power Source: AC Supply

Environmental Conditions

---

Operating Temperature: 40°F (4.4°C) - 105°F (40.6°C)
Operating Relative Humidity: 10% - 90%
Storage Temperature: -40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity: 5% - 95%

Physical Characteristics

---

Height: 6.66" (169.20 mm)
Width: 5.46" (138.70 mm)
Depth: 9.56" (242.90 mm)
Weight (Approximate): 3.59 lb (1628.40 g)

Miscellaneous

---

Power Cable Localization: US
Package Contents:

• ZD611t-HC Thermal Transfer Printer
• Empty Ribbon Take-up Core (0.5 in.)
• AC Power Supply
• Power Cord(s)
• USB Cable
• Quick Start Guide
• Regulatory Guide

Cables Included:

AC

USB

Power Adapter Included: Yes
Optional Connectivity:

Serial (RS-232)

Wireless LAN

Platform Supported:

PC

iOS

Android

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Compliance:

Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 2 Year
