Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 40B10135US
Brand Name: Lenovo

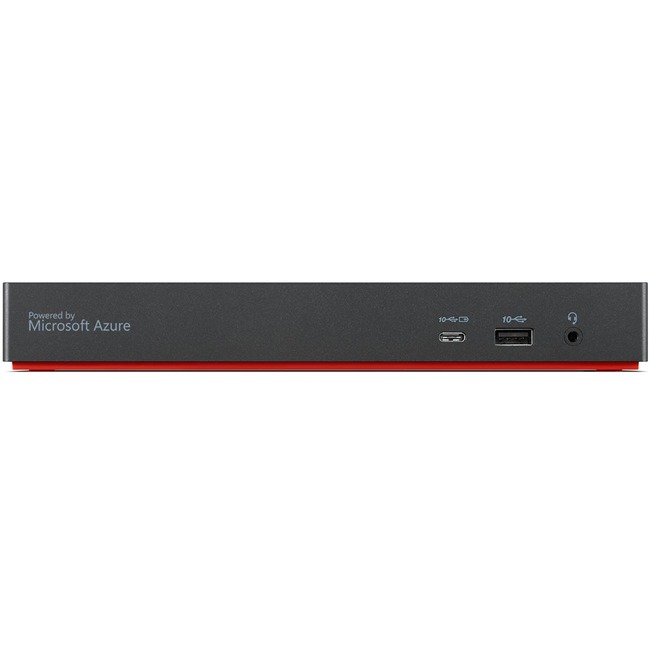

Product Name: ThinkPad Universal Thunderbolt 4 Smart Dock
Marketing Information:
A SMARTER WAY TO WORK.
The robust way to maximize productivity and the workspace, the Lenovo™ ThinkPad® Universal Thunderbolt™ 4 Smart Dock (40B10 is the leader in our new series of docks offering a smarter way to work. Capable of driving 8k displays and 40Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 4 connectivity for commercial users and a new cloud-based management paradigm for IT managers. And it's all powered by Microsoft Azure Sphere.
Features include:
- One Cable For All Your Needs: The ThinkPad Universal Thunderbolt™ 4 Smart Dock adds 11+ productivity-enhancing ports to your PC in a single cable. With support for one 8K monitor or up to four 4K monitors, 40 Gbps data speeds via Thunderbolt™ 4,
and 10 Gbps via USB-A, and rapid-charging for up to 100W laptops, you can drastically expand the potential of your workspace with ease. - Universal Dock Compatibility: Get more longevity from your dock with the forward-thinking universal design of the ThinkPad Universal Thunderbolt™ 4 Smart Dock that supports Thunderbolt™ 3 and 4, USB 4™, USB-C, and extended compatibility with a wide range of brands and Multi-OS notebooks.
- Innovative Remote Management: Enter a new age of dock management with efficiency-enhancing innovations such as remote firmware updates without a PC connected, remote port management, data analytics reporting, diagnostic tools, and Microsoft Azure Sphere security solution that aim to streamline the workflow of IT managers and boosts their productivity.
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Number of Displays Supported: 4
Supported Resolutions: 3840 x 21607680 x 4320Screen Mode Supported: 4K8KDevice Supported: NotebookDesktop PCNetwork & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Host Interface: USB Type CThunderbolt 4Total Number of USB Ports: 5
Number of USB Type-C Ports: 1
USB Type-C: Yes
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPort Outputs: 2
DisplayPort: Yes
DisplayPort Version: 1.4
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
Number of HDMI Outputs: 1
HDMI: Yes
HDMI Version: 2.1
Thunderbolt: Yes
Thunderbolt Ports Quantity: 2
Software
Operating System Supported: Windows
Power Description
Maximum Power Supply Wattage: 100 W
Physical Characteristics
Product Color: BlackRedHeight: 1.18" (30 mm)
Depth: 3.15" (80 mm)
Weight (Approximate): 1.01 lb (460 g)
Miscellaneous
Package Contents:
- ThinkPad Universal Thunderbolt 4 Smart Dock
- 135W Adapter
- 1 x Power Cable
- Standard Thunderbolt Cable
Compatibility:
Lenovo ThinkPad Notebook
Warranty
Limited Warranty: 3 Year
