Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7Z71A04WNA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: SR630 V2
Product Model: 7Z71A04WNA

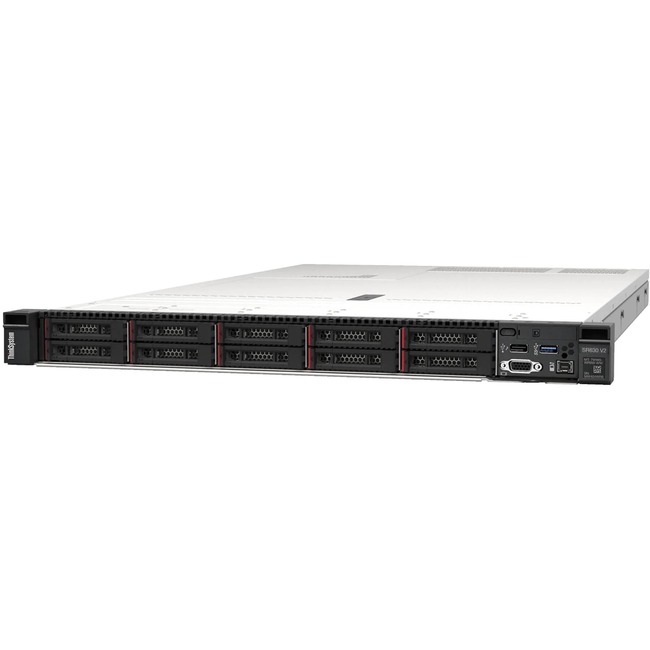

Product Name: ThinkSystem SR630 V2 7Z71A04WNA Server
Marketing Information:
The Lenovo ThinkSystem SR630 V2 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 V2 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Type: Xeon Silver
Processor Model: 4314
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2.40 GHz
Cache: 24 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C621A
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 8 TB
Memory Technology: TruDDR4
Memory Clock Speed: 3.20 GHz
Total Number of Memory Slots: 32
Number of Occupied Memory Slots: 1
Intel Optane Memory Ready: Yes
Error Checking: ECC
Signal Processing: Registered (Buffered)
Storage
Total Hard Drive Capacity: No
Optical Drive Type: No
Controllers
Controller Type: Serial ATA/60012Gb/s SASController Model: Intel RSTe RAID
RAID Supported: Yes
RAID Levels: 0, 1, 5, 10, JBOD
I/O Expansions
Hot Swappable Bays: Yes
Display & Graphics
Graphics Controller Model: G200
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 6
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
VGA: Yes
Remote Management: Yes
Remote Management Controller: XClarity Controller (XCC) Enterprise
Operating System
Operating System Supported: Windows Server 2016Windows Server 2019Windows Server 2022Red Hat Enterprise Linux 7.9Red Hat Enterprise Linux 8.2Red Hat Enterprise Linux 8.3Red Hat Enterprise Linux 8.4Red Hat Enterprise Linux 8.5SUSE Linux Enterprise Server 12 SP5SUSE Linux Enterprise Server 15 SP2SUSE Linux Enterprise Server 15 SP3Operating System: No
Power Description
Input Voltage: 120 V AC230 V ACNumber of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 750 W
Hot Swappable Power Supply: Yes
Miscellaneous
Security Features:
- Chassis Intrusion Switch
- Power-on Password
- Administrator's Password
- Trusted Platform Module (TPM), supporting TPM 2.0
Energy Star: Yes
Environmentally Friendly: Yes
Energy Efficiency Certification:
ENERGY STAR 3.0China Energy Conservation Program (CECP)Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Form Factor: Rack
Rack Height: 1U
Height: 1.70" (43.18 mm)
Width: 17.30" (439.42 mm)
Depth: 30.40" (772.16 mm)
Weight (Approximate): 57.98 lb (26300 g)
Warranty
Limited Warranty: 3 Year
0 items
):
$3,643.95
