Description:
General Information
Manufacturer: Legrand Group
Manufacturer Part Number: PHAFMU48
Brand Name: Ortronics
Product Line: Infinium
Product Series: HDJ

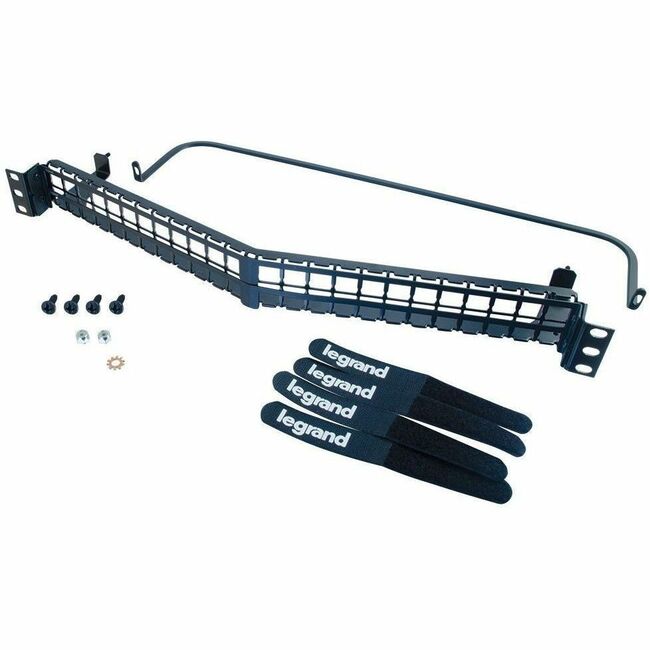

Product Name: Infinium HDJ Series 48-Port Unloaded Angled Panel with Label Kit, Black
Marketing Information:
The Infinium HDJ Series 48-Port Unloaded Angled Panel with Label Kit supports rear loading of HDJ fiber adapters and HDCA fiber cassettes. This high density panel includes a rear cable management bar with straps to support a clean and organized look. The panel is made of black powder-coated steel and is designed for optimum performance, saving valuable rack space by occupying only 1RU. The included label kit was created specifically for fiber applications and allows for easy and intuitive port identification.
Product Type: Blank Patch Panel
Technical Information
Media Type Supported: Optical Fiber
Interfaces/Ports
Total Number of Ports: 48
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: Powder Coated Steel
Form Factor: Rack-mountableCabinet MountableCompatible Rack Unit: 1U
Height: 3.50" (88.90 mm)
Width: 19" (482.60 mm)
Depth: 8.04" (204.22 mm)
Miscellaneous
Package Contents:
- Infinium HDJ Series 48-Port Unloaded Angled Panel
- Label Kit
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: Mexico
Warranty
Limited Warranty: 5 Year
