General Information

---

Manufacturer: CyberPower Systems, Inc
Manufacturer Part Number: OL6000RT3UTAA
Brand Name: CyberPower
Product Line: Smart App Online
Product Model: OL6000RT3UTAA

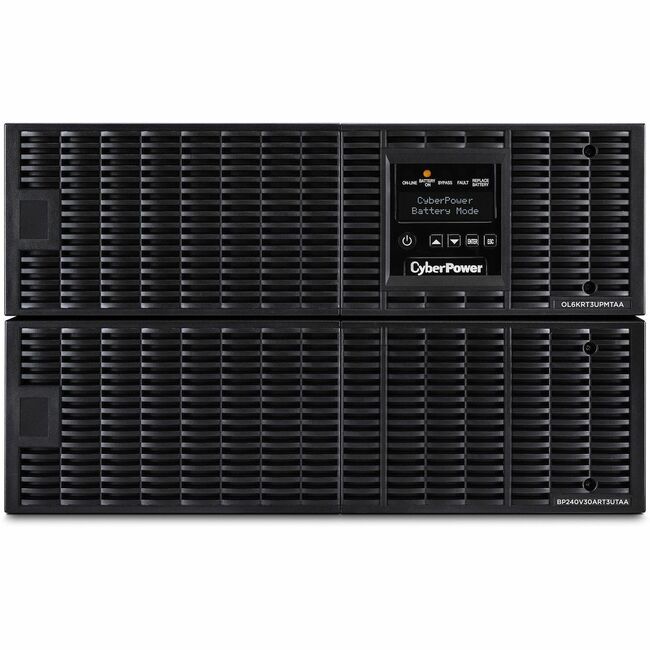

Product Name: OL6000RT3UTAA TAA UPS Systems
Marketing Information:

The CyberPower Smart App Online OL6000RT3UTAA UPS has been manufactured to comply with the Federal Trade Agreement Act (TAA). This network-grade UPS protects mission-critical servers, routers and telecom equipment with true sine wave output and double-conversion topology for seamless power protection. The OL6000RT3UTAA also offers generator compatibility and delivers clean AC power with zero transfer time.

Other features include a flexible rack/tower design for easy installation, extendable LCD control panel, Smart Battery Management, Fast Charge Technology, and energy-saving GreenPower UPS™ ECO Mode. The CyberPower OL6000RT3UTAA UPS is protected by a three-year warranty as well as a $300,000 Connected Equipment Guarantee.

Data Line Protection

Prevents power surges that travel through telephone and Ethernet lines from causing damage to electronics.

Double-Conversion Topology

Provides consistent, clean, and nearly perfect power, regardless of the condition of incoming power. Systems with this technology operate on isolated DC power 100% of the time and have a zero transfer time because they never need to switch to battery. Double-conversion UPS systems are designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output

Provides power protection to ENERGY STAR® 6.0 systems with Active PFC power supplies.

Extendable LCD Panel

Displays UPS statuses and customizable operating settings from up to 10 ft. away (with optional cable). The extendable LCD control panel can be configured in English, Spanish, or French for ease of use.

Extended Battery Module (EBM)

Extends runtime by adding EBMs. This UPS allows for up to ten added modules.

Fast Charge Technology

Allows UPS batteries to return to 100% capacity more rapidly by utilizing a built-in charger inside each EBM. Restores a complete charge within 5 hours regardless of the number of EBMs.

Smart Battery Management (SBM)

Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

GreenPower UPS™ ECO Mode

Improves UPS efficiency up to 96%; saves on electrical and cooling costs.

Hot-Swappable Batteries

Eliminate downtime related to UPS power maintenance for continuous power availability.

Critical & Non-Critical Loads

The UPS has two banks of outlets which can be configured so that the non-critical loads shut off after a set timeframe to provide additional runtime for the critical load outlet. Users can prioritize their equipment runtimes to maximize the output of the UPS to meet their power requirements.

Emergency Power Off (EPO)

Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Backfeed Protection

Prevents the risk of electric shock from any electric current feeding back from the UPS through the input terminals when utility power is lost. Backfeed protection isolates the UPS and allows service personnel to safely work on the utility power.

Generator Compatible

Provides stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Product Type: Double Conversion Online UPS

Technical Information

---

AVR: Yes
Plug/Connector Type: NEMA L6-30P
Receptacle Type:

NEMA L6-20R

NEMA L6-30R

Receptacle Detail:

2 x NEMA L6-30R

2 x NEMA L6-20R

Dataline Protection:

RJ-11

RJ-45

Overload Protection: Yes
Transfer Time: 0 ns
EMI/RFI Noise Filter: Yes
Phase: Single Phase
Energy Saving: ECO Mode Efficiency >96%
Application/Usage:

Server

Network Equipment

VoIP

Critical & Non-critical Load

Enterprise Installation

Mission Critical Equipment

Power Description

---

Load Capacity (VA): 6 kVA
Load Capacity (Watt): 5.40 kW
Input Voltage:

230 V AC

120 V AC

Input Voltage Range:

120 V AC - 139 V AC

140 V AC - 159 V AC

160 V AC - 179 V AC

180 V AC - 280 V AC

Output Voltage:

200 V AC

208 V AC

220 V AC

230 V AC

240 V AC

Input Frequency: 70 Hz
Output Frequency: 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 2430 J

Management

---

Network Management: SNMP/HTTP Remote Monitoring
Alarm:

Battery Mode

Low Battery

Overload

UPS Fault

Replace Battery

Controls/Indicators

---

Status Indicators:

LED Indicators:

• Power On (white)
• Line Mode (green)
• Battery Mode (yellow)
• Bypass Mode (yellow)
• Fault (red)
• Replace Battery (red)

LCD Control Panel:

• 38 different settings or status options via the UPS Status menu,
• UPS Setup & Control menus, and run Testing/Battery Calibration menus.

Interfaces/Ports

---

Serial Port: Yes
EPO Port: Yes
USB (HID Compliant) Port: Yes

Battery Information

---

Number of Batteries: 20
Battery Characteristics: Sealed
Battery Chemistry: Lead Acid
Battery Size: 12V
Battery Capacity: 7000 mAh
Backup/Run Time (Full Load): 5 Minute
Backup/Run Time (Half Load): 15 Minute
Hot Swappable: Yes
Typical Battery Recharge Time: 4 Hour
Replaceable Battery: Yes

Environmental Conditions

---

Maximum Operating Elevation: 10000 ft (3048000 mm)
Maximum Storage Elevation: 50000 ft (15240000 mm)
Storage Temperature: 5°F (-15°C) - 113°F (45°C)
Operating Humidity: 0% - 90%
Storage Relative Humidity: 0% - 95%
Maximum Operating Temperature: 104°F (40°C)
Sound Emission (A-Weighted): 55 dB(A)
Thermal Dissipation: 1912 BTU/h

Physical Characteristics

---

Height: 5.25" (133.35 mm)
Width: 17" (431.80 mm)
Depth: 26" (660.40 mm)
Rack Height: 3U
Form Factor: Rack/Tower
Weight (Approximate): 55 lb (24947.58 g)

Miscellaneous

---

Package Contents:

• OL6000RT3UTAA TAA UPS Systems
• Mounting Hardware

Software Included: PowerPanel Business Edition
Energy Star: Yes
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 3 Year
