HIGH PERFORMANCE CORE SWITCHES FOR NEXT GENERATION 100G CAMPUS

New user demands and technology advances are increasingly putting pressure on campus networks requiring them to scale to support more devices and deliver more bandwidth. The rapid growth in wireless traffic, accelerated by the adoption of 802.11ac and 802.11ax Wi-Fi, is propelling the migration from 1GbE to Multi-gigabit at the access and, driving the need for faster networks at the aggregation and core.

Benefits | Premium core/aggregation switching

• Network core layer can be distributed across the campus, deploying ports and switching capacity where they are needed.
• The performance, scalability, and availability of a high-end enterprise-class chassis.
• The deployment flexibility of fixed form factor switches

40GbE and 100GbE for maximum performance

• Up to 32x 40/100 GbE ports per switch.
• Up to 8x 100 GbE stacking ports, 1.6 Tbps of stacking bandwidth per switch.
• Deliver the performance and scalability required by future generations of wireless access points, IoT and LTE devices.

Highly resilient core switching

• Redundant, hot-swappable power supplies and fans
• In-Service Software Upgrades (ISSU)
• Multi-Chassis Trunking (MCT) for core failover with load-balancing
• Hitless stack insertion and removal

Market-leading stacking scalability

• Up to 12 switches per stack
• Up to 10 km using standard optics or cables
• Up to 8x 40/100GbE standard QSFP28 stacking ports

Advanced L3 routing delivers design flexibility

• IPv4 and IPv6
• BGP, OSPF, VRRP, PIM, PBR, VRF

Data center leaf/spine deployment with 25 & 100 GbE

• Up to 48x 10/25GbE port per leaf switch for server connectivity
• Up to 48x 10GBASE-T copper ports per leaf switch for server connectivity
• Up to 32x 40/100 GbE ports per spine switch

Security and data privacy

• MACsec 128-bit and 256-bit data encryption ensures compliance and data confidentiality

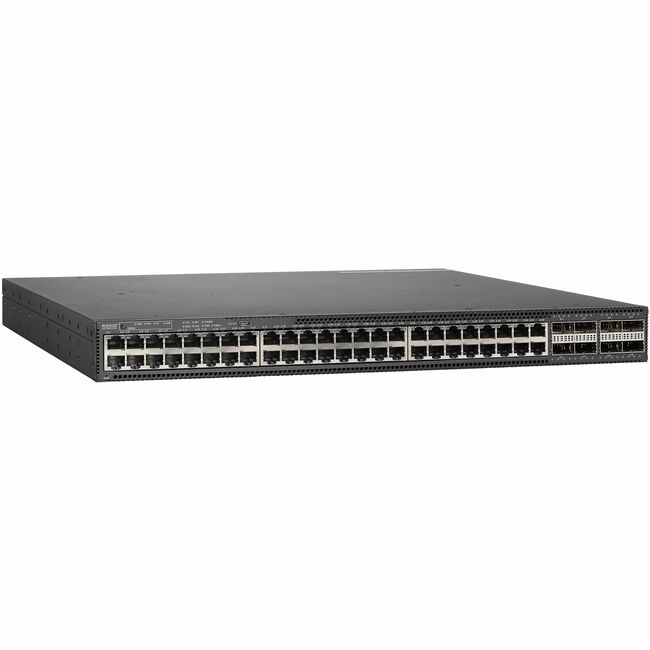

• ICX7850-48C Ethernet Switch
• 2 x AC Power Supplies
• 5 x Fans
