Description:
General Information
Manufacturer: IC INTRACOM
Manufacturer Part Number: 711845
Brand Name: Intellinet

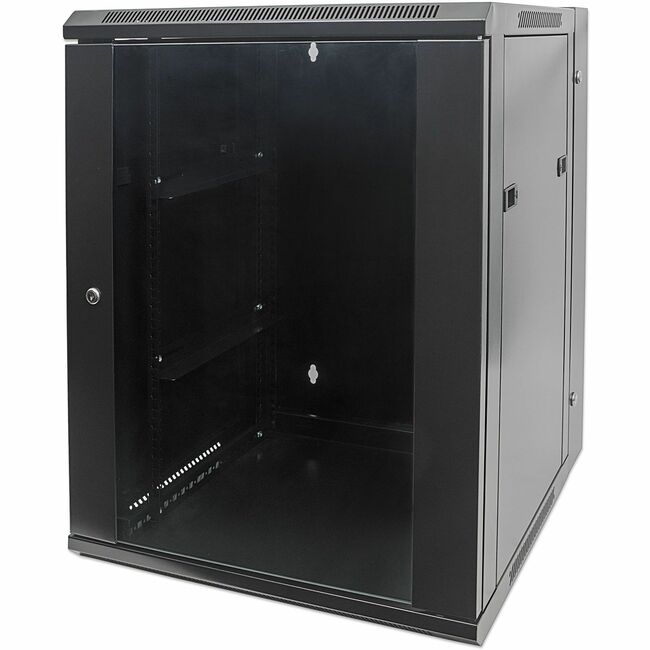

Product Name: 19" Double Section Wallmount Cabinet
Marketing Information:
Intellinet Network Solutions Double-Section wallmount cabinets offer you a flexible solution for your network installations. The tempered-glass door, easily removable side panels and cold-rolled galvanized steel are just some of the top quality workmanship and materials that are standard. These cabinets ship completely assembled for a quick and easy installation.
Features:
- Ideal for 19" rackmount applications
- Maximum static load of 30 kg (66 lb.)
- Usable depth: 425 mm (16.73 in.)
- Tempered-glass door can be opened more than 180°
- Cable entry via top panel
- Rear door for easy access to back of cabinet
- Cold-rolled, galvanized SPCC steel with up to 1.2 mm thickness
- Reversible Front door
- Easily removable side panels
- Ships assembled
- Three-year warranty
Product Type: Rack Cabinet
Technical Information
Rack Type: Enclosed Cabinet
Application/Usage: LAN SwitchPatch PanelFeatures: Removable Side PanelRear DoorReversible Front DoorPhysical Characteristics
Form Factor: Wall Mountable
Color Family: Black
Product Color: Black
Product Material: Cold Rolled SteelTempered GlassSPCCGalvanized SteelMaximum Weight Capacity: 66.14 lb (30000 g)
Static/Stationary Weight Capacity: 66.14 lb (30000 g)
Height: 19.69" (500 mm)
Width: 23.62" (600 mm)
Depth: 21.65" (550 mm)
Rack Height: 9U
Rack Width: 19" (482.60 mm)
Rack Depth: 16.73" (425 mm)
Weight (Approximate): 46.30 lb (21000 g)
Miscellaneous
Package Contents:
- 19" Double Section Wallmount Cabinet
- Installation Hardware Including Tool
- 10 x M6 Sets
- 4 x Keys
Assembly Required: No
Warranty
Limited Warranty: 3 Year
