Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: APDU9941
Brand Name: APC by Schneider Electric
Product Series: 9000

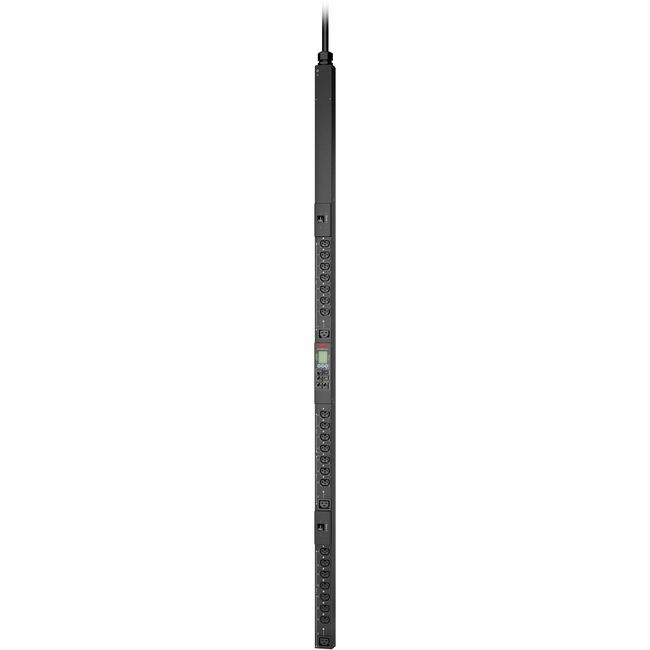

Product Name: NetShelter 9000 24-Outlet PDU
Marketing Information: The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
More from the Manufacturer
Product Type: PDU
Technical Information
PDU Type: Switched
Plug/Connector Type: NEMA L6-30P
Receptacle Type: IEC 60320 C19/C21IEC 60320 C13/C15Receptacle Detail: 21 x IEC 60320 C13/C153 x IEC 60320 C19/C21Protection Type: Overload Protection
Power Description
Input Voltage: 200 V208 VInput Voltage Range: 200 V AC - 240 V AC
Output Voltage: 200 V AC208 V ACPower Rating (VA): 4.99 kVA
Power Rating (Watt): 5 kW
Input Current: 30 A
Interfaces/Ports
Network (RJ-45): Yes
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Form Factor: Tower
Placement: Side
Rack Height: 0U
Cord Length: 10 ft (3.05 m)
Height: 72.01" (1829 mm)
Width: 2.17" (55 mm)
Depth: 1.81" (46 mm)
Weight (Approximate): 18.74 lb (8500.32 g)
Miscellaneous
Package Contents: NetShelter 9000 24-Outlet PDU Installation guideRack mounting bracketsSafety guide
Country of Origin: India
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information: 3 years repair or replace
