Description:
General Information
Manufacturer: Supermicro Computer, Inc
Manufacturer Part Number: MBD-X12SPL-F-O
Brand Name: Supermicro
Product Model: X12SPL-F

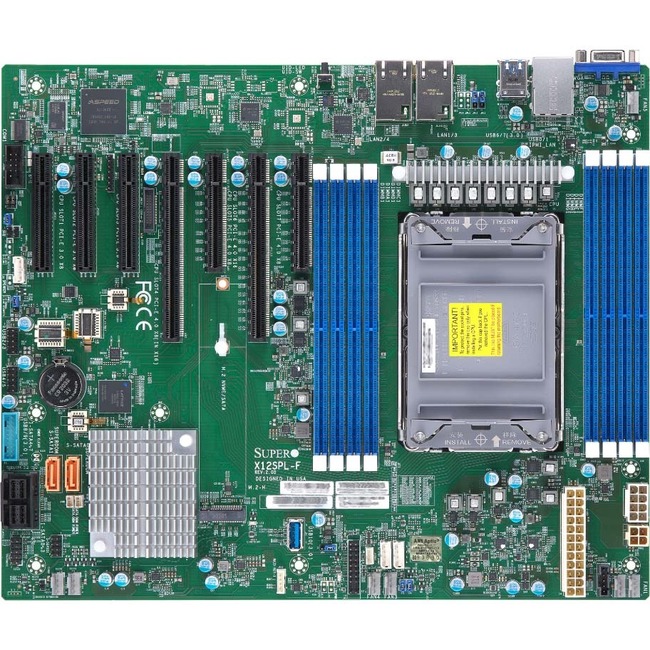

Product Name: X12SPL-F Server Motherboard
Packaged Quantity: 1
Package Type: Retail
Product Type: Server Motherboard
Processor & Chipset
Chipset Manufacturer: Intel
Chipset Model: C621A
Total Processor Supported: 1
Processor Socket: Socket P
Processor Generation Supported: 3rd Gen
Processor Supported: Xeon GoldXeon SilverXeon BronzeXeon PlatinumMemory
Number of Memory Slots: 8
Memory Form Factor: DIMMRDIMMLRDIMMMaximum Memory Supported: 2 TB
Memory Speed Supported: 3200 MHz2933 MHz2666 MHzMemory Technology: DDR4 SDRAM
Intel Optane Memory Ready: Yes
I/O Controller
Controller Type: Serial ATA/600
RAID Supported: Yes
RAID Levels: 01510Video
Onboard Video: On-board Video Chipset
Graphics Controller Model: AST2600
Network & Communication
Gigabit Ethernet: Yes
I/O Expansions
Total Number of Expansion Slots: 7
Total Number of PCI Express Slots: 7
Number of PCI Express x8 Slots: 5
Number of PCI Express x16 Slots: 2
Interfaces/Ports
Total Number of USB Ports: 4
Number of USB 2.0 Ports: 2
Number of USB 3.2 Gen 1 Ports: 2
VGA: Yes
Number of Network (RJ-45) Ports: 2
Onboard Interfaces
Number of SATA Interfaces: 10
Number of M.2 Interfaces: 1
Total Number of Onboard USB Ports: 7
Number of Onboard USB 2.0 Ports: 4
Number of Onboard USB 3.2 Ports: 3
Physical Characteristics
Form Factor: ATX
Width: 12.10" (307.34 mm)
Depth: 10" (254 mm)
Miscellaneous
Package Contents:
- X12SPL-F Server Motherboard
- 2 x I/O Cables
- 1 x I/O Shield
- 1 x Motherboard Quick Reference Guide
Compatibility:
1U Chassis:
- SC813MF2TQC4-R407CB
- SC813MF2TQC-505CB
- SC113MFAC2-605CB
- SC113MFAC2-R804CB
- SC514-505
2U Chassis:
- SCLA26E1C4-R609LP
- SC213LT-600LPB
- SC825MBTQC-R802LPB
- SC825TQC-R802LPB
- SCLA25TQC-R609LP
3U Chassis:
4U/Tower Chassis:
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 1 Year
0 items
):
$724.95
