Description:
General Information
Manufacturer: Legrand Group
Manufacturer Part Number: 41232
Brand Name: C2G
Product Series: Pro

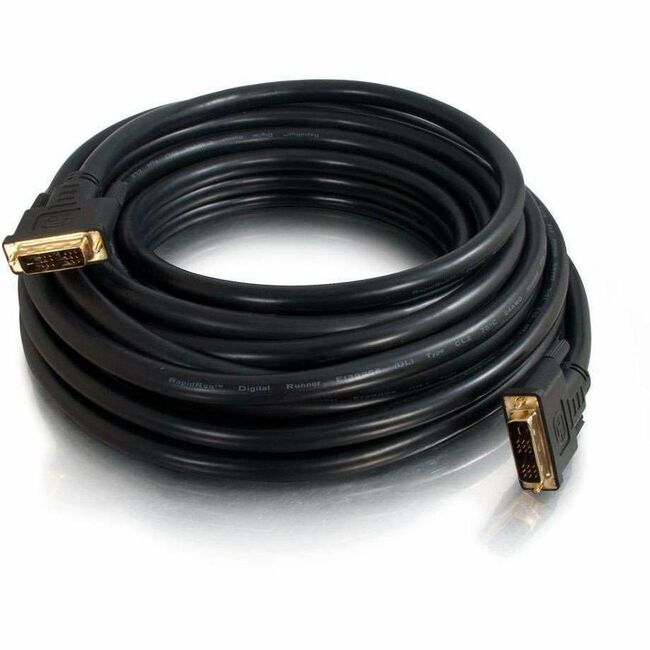

Product Name: Pro DVI-D Video Cable
Marketing Information:
The new Pro Series commercial grade CL2 cables offer true digital performance while meeting the highest standards in building code requirements for in-wall installations. Available for HDMI®, DVI and DVI+3.5mm audio signals, these cables can meet the demands of virtually any commercial installation.
By supporting resolutions of 1080p for displays and up to 1920 x 1200 pixels for computers, and with lengths ranging from 6 to 50 feet, the Pro Series is the ideal connectivity solution for A/V equipment used in classrooms or conference rooms. 24k gold-plated connectors prevent metal corrosion, resulting in the optimal signal transfer for the highest picture and sound quality. Shielded 24AWG copper conductors protect against EMI and RFI to ensure uninterrupted performance. high quality materials and construction, along with rigorous factory testing and a full lifetime warranty, guarantee long-term, dependable performance.
CL2 is equivalent to FT4 rating in Canada, while CMP is equivalent to FT6.
Please Note: Does not support analog video; only supports digital video signal.
Product Type: Video Cable
Technical Information
Cable Type: DVI-D
Cable Length: 15 ft (4.57 m)
Connector Type on First End: DVI-D (Single-Link) Digital Video
Connector Gender on First End: Male
Connector on First End Details: 1 x 19-pin DVI-D (Single-Link) Digital Video - Male
Connector Type on Second End: DVI-D (Single-Link) Digital Video
Connector Gender on Second End: Male
Connector on Second End Details: 1 x 19-pin DVI-D (Single-Link) Digital Video - Male
Connector Plating: Gold
Contact Plating: Gold
Shielding: Yes
Jacket Type: CL2FT4Device Supported: Video DeviceDisplayAmerican Wire Gauge: 24 AWG
Supported Resolution: 1920 x 1200
Features: Corrosion ResistantEMI/RF ProtectionMoldedStrain ReliefBraidedDurablePhysical Characteristics
Color Family: Black
Product Color: Black
Jacket Color: Black
Insulation Color: White/BrownRed/WhiteWhite/GreenWhite/BlueOrange/YellowRedVioletWhiteGrayPinkProduct Material: Copper
Contact Material: Brass
Insulation Material: Polyethylene Terephthalate (PET)
Shielding Material: Aluminum TapePolyesterJacket Material: Polyvinyl Chloride (PVC)Polyvinylidene Fluoride (PVDF)Weight (Approximate): 1.97 lb (893.58 g)
Miscellaneous
Application/Usage: CommercialResidentialClassroomConference RoomEnvironmental Compliance: Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Warranty
Limited Warranty: Lifetime
