General Information

---

Manufacturer: Wilson Electronics
Manufacturer Part Number: 650145
Brand Name: WeBoost
Product Line: Home Complete
Product Model: 650145

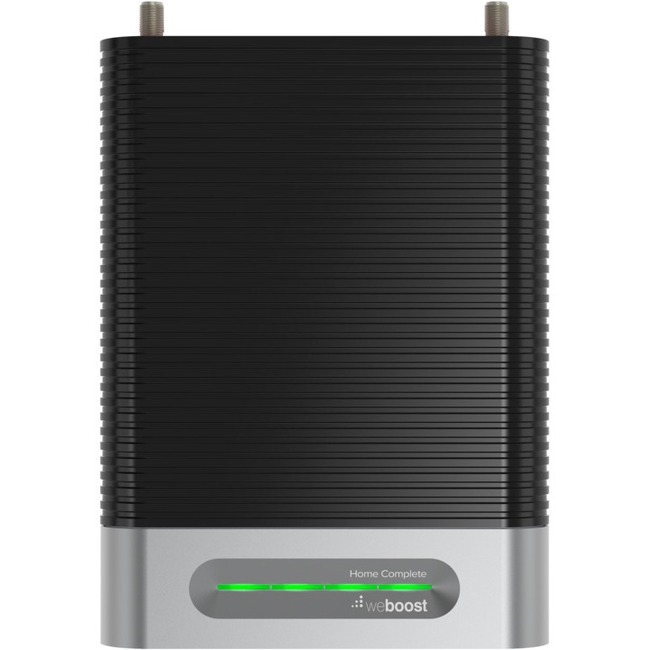

Product Name: Home Complete 650145 Cellular Phone Signal Booster
Marketing Information: The weBoost Home Complete cell signal booster offers best-inclass performance in its price range. The Home Complete offers homeowners the ability to enhance networks speeds across all carriers throughout a large, multi-level home-up to 7,500 sq. ft. With the addition of Band 25, it also provides enhanced support for additional carriers across Canada. The Home Complete's booster and inside antenna are designed to complement contemporary décor. For ease of installation and versatility, the wall-mount brackets for the booster and inside antenna can be secured with the included 3M® Command™ strips or using screws (not included). The inside antenna also features a built-in kickstand for optional shelf placement. With donor and server ports on the top of the booster unit, the Home Complete helps prioritize cable access and organization. Users will experience faster data speeds, better voice quality, fewer dropped calls, and superior streaming capability. Like all weBoost boosters, it works on all major Canadian carriers. Comes with installation guide, 2-year manufacturer's warranty, and 30-day money-back guarantee.
Product Type: Cellular Phone Signal Booster

Technical Information

---

Frequency Range:

700 MHz to 700 MHz

850 MHz to 850 MHz

1700 MHz to 2100 MHz

1900 MHz to 1900 MHz

Cellular Generation: 4G
User Supported: Multi
Antenna Type:

Directional Antenna

Panel

Maximum Gain: 72 dB
Maximum Coverage Area: 696.8 m²

Interfaces/Ports

---

RF Connector Type: F-Type

Physical Characteristics

---

Mount Type: Wall Mountable
Height: 8.25" (209.55 mm)
Width: 6" (152.40 mm)
Depth: 2.40" (60.96 mm)
Weight (Approximate): 703.1 g

Miscellaneous

---

Package Contents:

• Home Complete 650145 Cellular Phone Signal Booster
• Outside Directional Antenna (314445)
• Fabric Inside Panel Antenna (314440)
• Power Supply (850023)
• 60' + 75' Black RG11 Cable (951160) (951175)
• Outside Antenna Mounting Bracket
• Wall Mount Brackets w/ Command Strips
• 15 x Cable Mounting Clips

Warranty

---

Limited Warranty: 2 Year
