Description:
General Information
Manufacturer: Vertiv
Manufacturer Part Number: I10002
Brand Name: Vertiv Geist
Product Model: MN01X4B1-24D203-3TL5A0A10-S

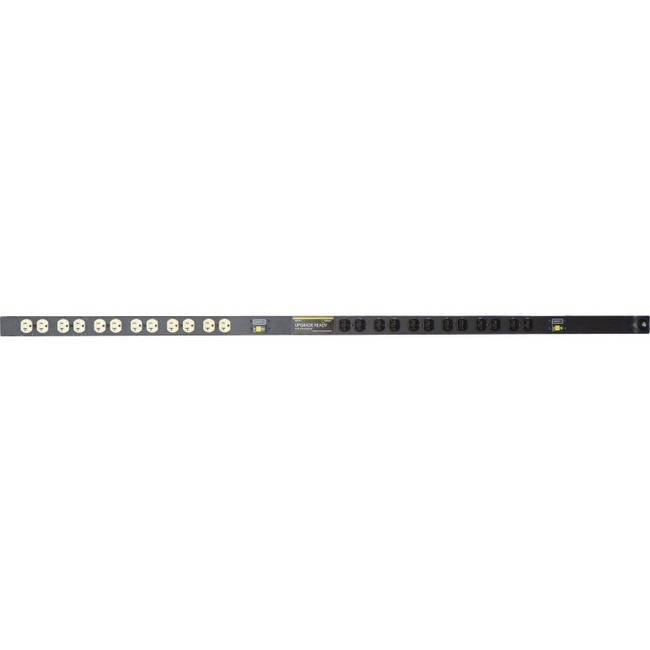

Product Name: MN01X4B1-24D203-3TL5A0A10-S 24-Outlets PDU
Marketing Information:
I10002 provides reliable power distribution where you need it in the rack. With the Geist Upgradeable hot-swap technology, users may easily transform basic PDUs to metered or monitored PDUs with the addition of the appropriate Interchangeable Monitoring Device (IMD) module; all without causing any interruption.
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: NEMA L5-30P
Plug/Connector Detail: 1 x NEMA L5-30P
Receptacle Type: NEMA 5-20R
Receptacle Detail: 24 x NEMA 5-20R
Power Description
Input Voltage: 120 V AC
Output Voltage: 120 V AC
Power Rating (Watt): 2.80 kW
Input Current: 30 A
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Rack Height: 0U
Width: 2" (50.80 mm)
Depth: 2" (50.80 mm)
Length: 66.25" (1682.75 mm)
Miscellaneous
Package Contents:
- MN01X4B1-24D203-3TL5A0A10-S 24-Outlets PDU
- Vertical Mounting Bracket Kit
Country of Origin: United States
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 5 Year
0 items
):
$661.95
