Description:
General Information
Manufacturer: Black Box Corporation
Manufacturer Part Number: LGC220A
Brand Name: Black Box
Product Line: Pure Networking

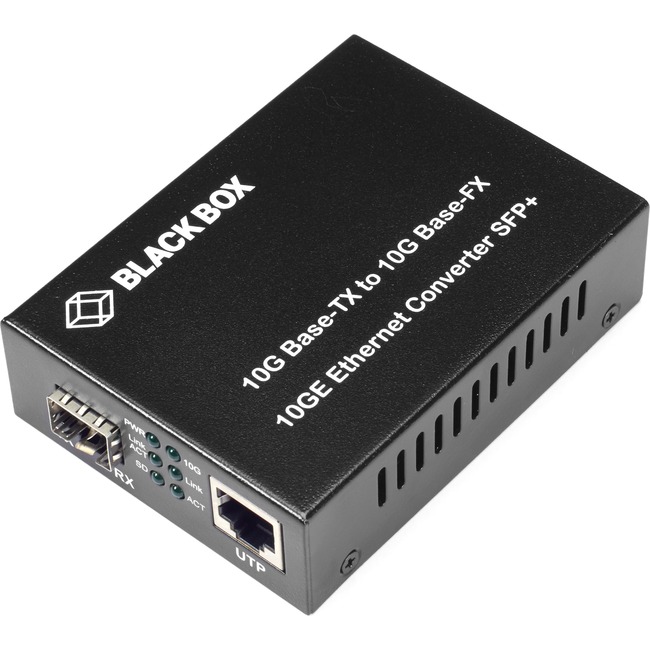

Product Name: 10GBASE-TX to 10GBASE-FX Media Converter
Marketing Information:
Convert quickly and easily
Convert 10GBASE-T to 10GBASE-R without hassle. The bridge media converter is designed with a 10GBASE Ethernet PHY chip that connects these two segment types smoothly.
Support for a variety of media
The converter supports 1000BASE-T: CAT5 UTP/STP. MAX 100m; 2.5GBASE-T: CAT5e UTP/STP. MAX 50m; 5GBASE-T: CAT5e UTP/STP. MAX 50m; and 10G BASE-T: CAT6a UTP/STP. MAX 50m.
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Media & Performance
Media Type Supported: Twisted PairOptical FiberFiber Mode Supported: Single-modeMulti-modeMaximum Distance Supported: 0.10 km (0.06 Mile)
Fiber Optic Cable Core/Cladding Specification: 50/125 µm62.5/125 µm8.3/125 µm9/125 µm10/125 µmI/O Expansions
Total Number of Expansion Slots: 1
Expansion Slot Type: SFP+
Number of SFP+ Slots: 1
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-T10GBase-FXPower Description
Power Source: AC Adapter
Power Consumption: 12 W
Plug/Connector Type: Barrel
Physical Characteristics
Form Factor: Standalone
Height: 1" (25.40 mm)
Width: 3.70" (93.98 mm)
Depth: 2.70" (68.58 mm)
Weight (Approximate): 11.20 oz (317.51 g)
Miscellaneous
Package Contents:
- Pure Networking 10-Gigabit (10-Gbps) Media Converter
- 12-V DC Power Supply
- Power Cord
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)Country of Origin: China
Warranty
Limited Warranty: 3 Year
