General Information

---

Manufacturer: Legrand Group
Manufacturer Part Number: 54306
Brand Name: C2G

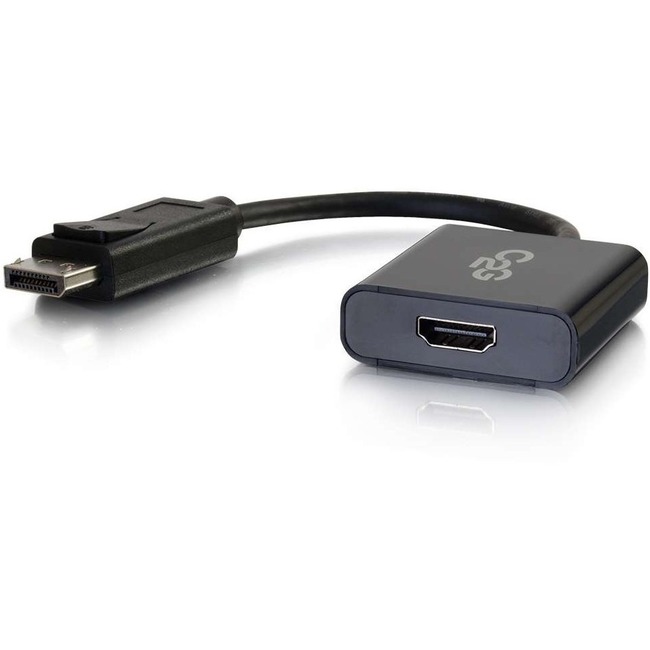

Product Name: DisplayPort to HDMI Active Adapter Converter 4K 30Hz - Black
Marketing Information: This adapter allows the DisplayPort™ video output of a laptop to connect to the HDMI® input of a display and is perfect for applications including displaying video on an HDTV, projector, or monitor in a classroom, on a desktop, or in a meeting room. This active DisplayPort to HDMI active adapter can be used in either DisplayPort single-mode or dual-mode outputs , providing the conversion for a DisplayPort source even when that source does not support DP++. Active DisplayPort conversion is excellent for applications where multiple DisplayPort adapters are required to connect to a single graphics card. This allows every active adapter to interface with a corresponding display.

On The Go Enhanced
Be prepared for any meeting, presentation, or event with the full confidence that you have the right connection in an ultra-compact design. The DisplayPort to HDMI adapter can connect a DisplayPort equipped laptop or tablet to a projector, monitor, or HDTV with a HDMI input port. The compact design of this adapter converter makes it a perfect fit for BYOD (Bring Your Own Device) applications in education or corporate environments.

Straightforward Install
This simple plug and play adapter converter does not require drivers for install and the device is powered through DisplayPort bus power, so no additional power adapters are needed.

Port Protection
The dongle-style adapter converter reduces strain on the video port. The cable between the DisplayPort connection and the adapter converter provides strain relief that protects the port from strain damage as cords are moved.
Product Type: A/V Cable

Technical Information

---

Cable Type: DisplayPort/HDMI
Cable Length: 8" (204.22 mm)
Connector Type on First End: DisplayPort Digital Audio/Video - Male
Connector on First End Details: 1 x DisplayPort Digital Audio/Video - Male
Connector Type on Second End: HDMI Digital Audio/Video - Female
Connector on Second End Details: 1 x HDMI Digital Audio/Video - Female
Shielding: Yes
Jacket Type: Standard Non-rated
Device Supported:

Monitor

Projector

Notebook

HDTV

Graphics Card

Audio/Video Device

Tablet

American Wire Gauge: 32 AWG
Supported Resolution: 4096 x 2160
Features:

Active

Strain Relief

Strain Resistant

Far-End Crosstalk (FEXT)

Damage Resistant

Physical Characteristics

---

Color Family: Black
Product Color: Black
Insulation Color:

White/Brown

Red/White

White/Orange

White/Green

White/Blue

Red

Orange

Yellow

White

Green

Insulation Material:

FM-PE

High-density Polyethylene (HDPE)

Shielding Material:

Aluminum Mylar

Aluminum/Magnesium

Mylar

Jacket Material: Polyvinyl Chloride (PVC)
Weight (Approximate): 1.42 oz (40.37 g)

Miscellaneous

---

Country of Origin: China

Warranty

---

Limited Warranty: 3 Year
