Description:
General Information
Manufacturer: Amer Networks, Inc
Manufacturer Part Number: PIG15
Brand Name: Amer
Product Model: PIG15

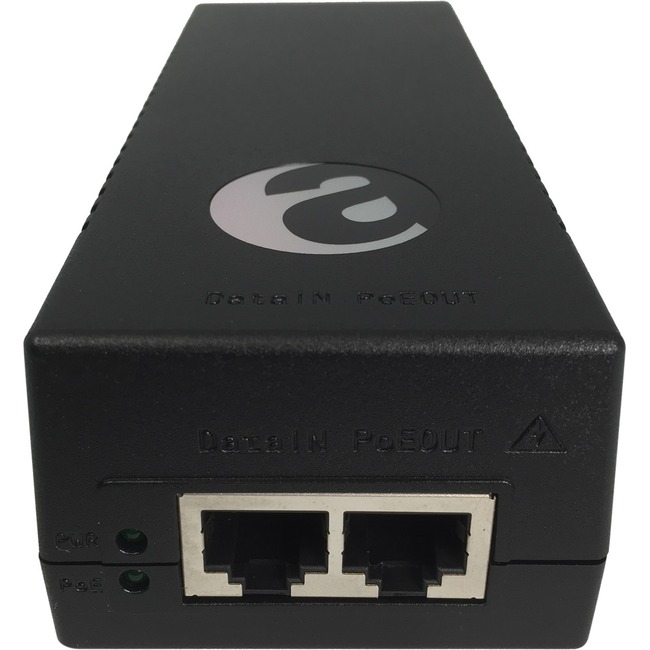

Product Name: Power-over-Ethernet Injector
Marketing Information:
The PIG15 is a single port Mid-Span offering a compact and cost effective and fully IEEE802.3af compliant solution.It can be used to power wireless LAN / WAN access points, IP security cameras, VoIP telephones and any other low port density installations.
The PIG15 PoE injector eliminates the need for an external power supply and any associated AC/DC power cabling. It provides a compact, affordable, safe and reliable power solution over existing Ethernet cabling.
Packaged Quantity: 1
Product Type: PoE Injector
Technical Information
Protection Type: Surge Protection
Power Description
Input Voltage: 120 V AC230 V ACMaximum Output Voltage: 52 V DC
Maximum Input Current: 300 mA
Maximum Output Power: 15.40 W
Interfaces/Ports
Input Ports: 1 x Gigabit Ethernet
Output Ports: 1 x Gigabit Ethernet
Physical Characteristics
Form Factor: External
Height: 1.57" (40 mm)
Width: 2.42" (61.50 mm)
Depth: 5.73" (145.50 mm)
Miscellaneous
Certifications & Standards:
- IEEE802.3af (PoE)
- FCC (Part15, Class B)
- CE (EN55022/24)
- C-Tick
- (AS/NZS55022/24)
- CCC (GB4943)
- KCC (K60950-1)
- BSMI (CNS13438)
- UL/cUL (EN6095-1)
- ICES (ICES-003)
- GS (EN60950-1)
- CE/LVD (EN60950-1)
- SAA (AS/NZS60950-1)
- CCC (GB4943)
- KC (K60950-1)
- PSE (J60950-1)
- NOM (IEC60950-1)
- S-mark (IEC60950-1)
- BSMI (CNS14336)
- EAC (LEC60950-1)
- BIS (BISIS13252)
GSEnvironmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Country of Origin: China
