Description:
General Information
Manufacturer: Cisco Systems, Inc
Manufacturer Part Number: CTS-SX10N-K9
Brand Name: Cisco
Product Line: TelePresence
Product Series: SX
Product Model: SX10

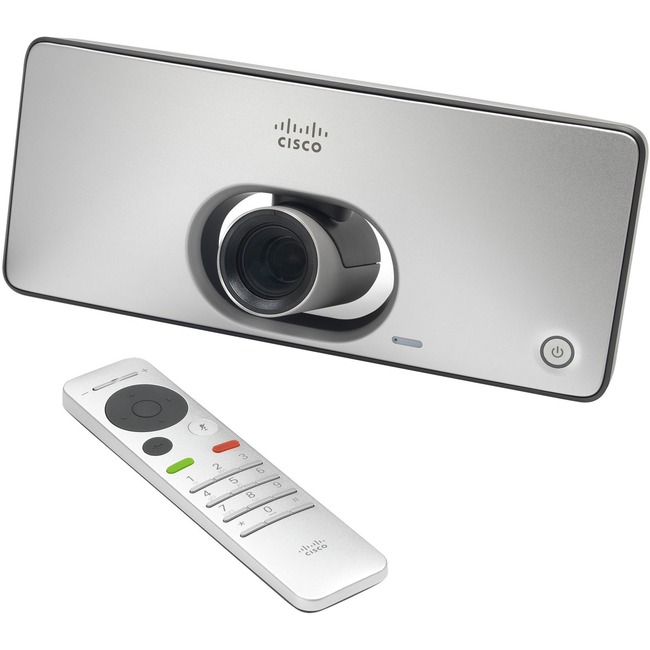

Product Name: TelePresence SX10 Quick Set
Marketing Information:
The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10 you can extend telepresence pervasively throughout your enterprise.
This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while a leadership wide-angle field of view provides the best overview even in small spaces.
Product Type: Video Conference Equipment
Technical Information
ITU-T Recommendation: SIP
Video Bridging: Point-to-Point
Video
Graphics Modes (Live): WXGA
Maximum Video Resolution (Live): 1920 x 1080
Maximum Frame Rate: 60 fps
Video Encoding: H.263H.263+H.264Audio
Microphone Form Factor: Internal
Audio Encoding: G.711aG.722G.722.1G.729abG.729Network & Communication
Network Technology: 10/100Base-TX
Ethernet Technology: Fast Ethernet
Interfaces/Ports
VGA In: Yes
HDMI In: Yes
HDMI Out: Yes
Audio Line In: Yes
Audio Line Out: Yes
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of HDMI Inputs: 1
Number of HDMI Outputs: 1
Number of Audio Line In: 1
Number of Audio Line Out: 1
Physical Characteristics
Form Factor: Wall Mountable
Height: 4.60" (116.84 mm)
Width: 10.80" (274.32 mm)
Depth: 3.60" (91.44 mm)
Weight (Approximate): 907.2 g
Miscellaneous
Package Contents:
- SX10 Codec With Integrated HD Camera and Microphone
- Wall Mount Kit
- TRC6 Remote Control
- Network and HDMI Cables
Warranty
Limited Warranty: 90 Day
