General Information

---

Manufacturer: Vertiv
Manufacturer Part Number: LV4020P-001
Brand Name: Vertiv AVOCENT
Product Line: LV
Product Series: 4000
Product Model: LV4020

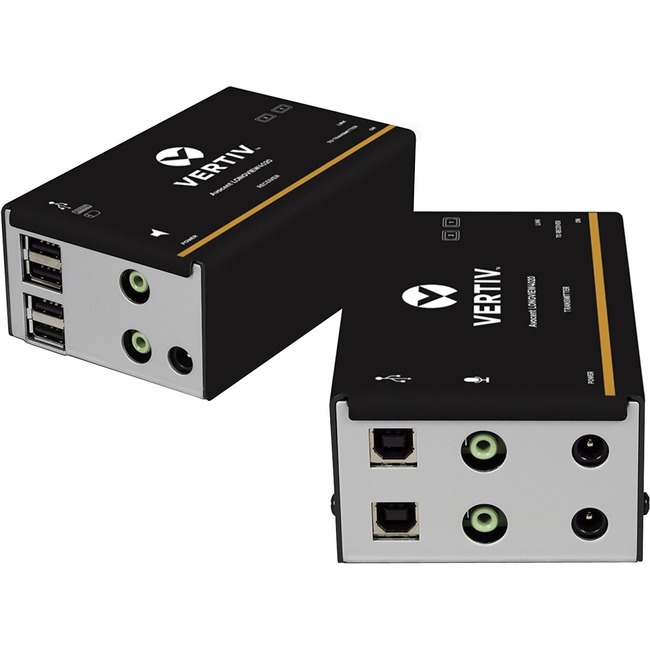

Product Name: LV4020 Dual VGA KVM Extender
Marketing Information: The Vertiv Avocent LongView LV4020P KVM extender is part of the Avocent high-performance family of KVM extension solution products. The LV4020P KVM extender allows users to distribute a single-link DVI video stream, USB 2.0, and analog audio over a single CATx cable. The LV4020P transmits and delivers perfect 1080p digital video at distances over 164 feet (50 meters) and resolutions up to 164 MPixels per second (such as 1920x1200 @ 60Hz or 3840x2400 @ 17Hz). Locate critical computing hardware in a secure and temperature-controlled environment, away from the user's workstation environment, while maintaining the same user experience. In operation, the LongView 4020P is truly plug and play, delivering full Extended Display ID (EDID) data from computer to screen ensuring your hardware is always setup to deliver optimal display performance.

More from the Manufacturer

Packaged Quantity: 1
Product Type: KVM Console/Extender

Technical Information

---

Connectivity Technology: Wired
Number of Computers Supported: 1
Number of Remote Users Supported: 1
Maximum Operating Distance: 164.04 ft (50000 mm)
Device Type: High Performance KVM

Video

---

Graphic Mode: WUXGA
Maximum Video Resolution: 1920 x 1200

Interfaces/Ports

---

Network (RJ-45): Yes
USB: Yes
DVI: Yes
Number of Network (RJ-45) Ports: 4
Number of USB Ports: 6
Number of DVI Ports: 4

Power Description

---

Input Voltage:

120 V AC

240 V AC

Input Voltage Range: 120V AC to 230V AC
Power Consumption: 12.50 W

Physical Characteristics

---

Form Factor: Rack-mountable
Transmitter Height: 2" (50.80 mm)
Transmitter Width: 4.70" (119.38 mm)
Transmitter Depth: 3" (76.20 mm)
Receiver Height: 2" (50.80 mm)
Receiver Width: 4.70" (119.38 mm)
Receiver Depth: 3" (76.20 mm)
Transmitter Weight (Approximate): 1.10 lb (498.95 g)
Receiver Weight (Approximate): 1.10 lb (498.95 g)

Miscellaneous

---

Platform Supported: PC
Country of Origin: United Kingdom

Warranty

---

Limited Warranty: 2 Year
