Product ID: 1026794908

Category:

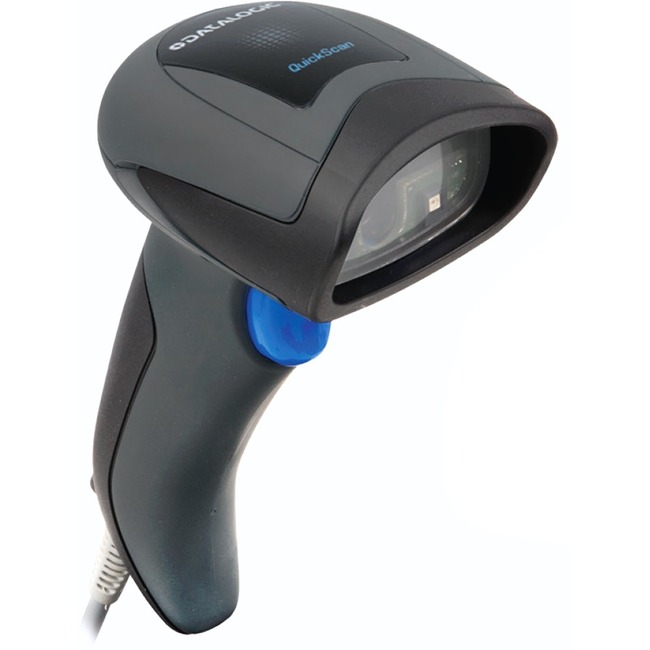

Datalogic QuickScan I QD2430 Handheld Barcode Scanner Kit


Datalogic QuickScan I QD2430 Handheld Barcode Scanner Kit

Price (CDN): $250.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $250.95

Quantity:




Description:
General Information
Manufacturer: Datalogic S.p.A
Manufacturer Part Number: QD2430-BKK1B
Brand Name: Datalogic
Product Line: QuickScan I
Product Model: QD2430
Product Name: QuickScan I QD2430 Handheld Barcode Scanner Kit
Marketing Information:

The popularity of 2D bar codes has spread across all market segments of the data capture industry. Now, with more affordable pricing and virtually no drawbacks with area imaging technology, 2D bar code readers are in high demand with features such as reading from mobile phone displays or in planning ahead for future 2D codes and imaging needs.

The QuickScan™ QD2400 2D imager was specifically created to address the needs of retailers and meet the market demand with outstanding omnidirectional reading performance on virtually all codes at an affordable price. Elegant design details are incorporated into a smaller, balanced lightweight enclosure without sacrificing Datalogic's well-known durability.

Ideally suited for applications at the point-of-sale (POS), the QuickScan QD2400 imager features a new illumination and aiming system developed with the unique intent to reduce visual stress of the operator during the daily scanning activities. It consists of a soft, dark red illumination combined with two blue LED triangles pointing at the targeted bar code. The result is a precise aiming system which contributes to low eye fatigue, yet still allows top operator efficiency.

The QuickScan QD2400 imager reads typical printed linear bar codes as well as complex 2D bar codes displayed on the screen of a mobile device or loyalty cards. The QD2400 imager provides a fast, reliable scan from an elegant and robust 2D imager.

Imaging technology meets or exceeds the productivity compared to laser scanners and provides the additional advantages of a lower cost-of-ownership and greater product reliability over the long term.


Packaged Quantity: 3
Product Type: Barcode Scanner Kit
Technical Information
Connectivity Technology: Cable
Scanning Capability:
  • 1D
  • 2D
  • Barcode Symbology Supported:

    1D / Linear Codes:

    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes.

    2D Codes:

    • Aztec Code
    • Aztec Mesas
    • Data Matrix
    • MaxiCode
    • QR Code
    • Micro QR Code
    • China Han Xin Code

    Postal Codes:

    • Australian Post
    • British Post
    • Canadian Post
    • China Post
    • Japanese Post
    • KIX Post
    • Korea Post
    • Planet Code
    • Postnet
    • Royal Mail Code (RM4SCC)

    Stacked Codes:

    • EAN/JAN Composites
    • GS1 DataBar Composites
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
    • MacroPDF
    • MicroPDF417
    • PDF417
    • UPC A/E Composites

    Image Sensor Type: Imager
    Scan Rate: 100 scan/s
    Scan Pattern: Omni-directional
    Scanning Distance: 13.78" (350 mm)
    Cable Type Included: USB
    Stand Included: Yes
    Reading Angle (Skew): 60°
    Reading Angle (Pitch): 65°
    Reading Angle (Roll): 360°
    Motion Tolerance: 25 in/s (635 mm/s)
    Maximum Ambient Light: 86000 lux
    Drop Specification: Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface
    Minimum Print Contrast: 25%
    Maximum Element Resolution (Code 39): 5 mil (0.13 mm)
    Maximum Element Resolution (DataMatrix): 10 mil (0.25 mm)
    Maximum Element Resolution (PDF417): 6.60 mil (0.17 mm)
    Interfaces/Ports
    Host Interface: USB
    Physical Characteristics
    Form Factor: Handheld
    Color Family: Black
    Product Color: Black
    Height: 6.40" (162.56 mm)
    Width: 1.60" (40.64 mm)
    Depth: 3.60" (91.44 mm)
    Weight (Approximate): 5.11 oz (144.866063 g)
    Miscellaneous
    Ingress Protection (IP) Rating: IP42
    Application/Usage:
  • Industrial
  • Retail
  • Country of Origin: Vietnam
