Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP9568
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Basic
Product Name: Basic Rack 2.3kVA PDU
Marketing Information:

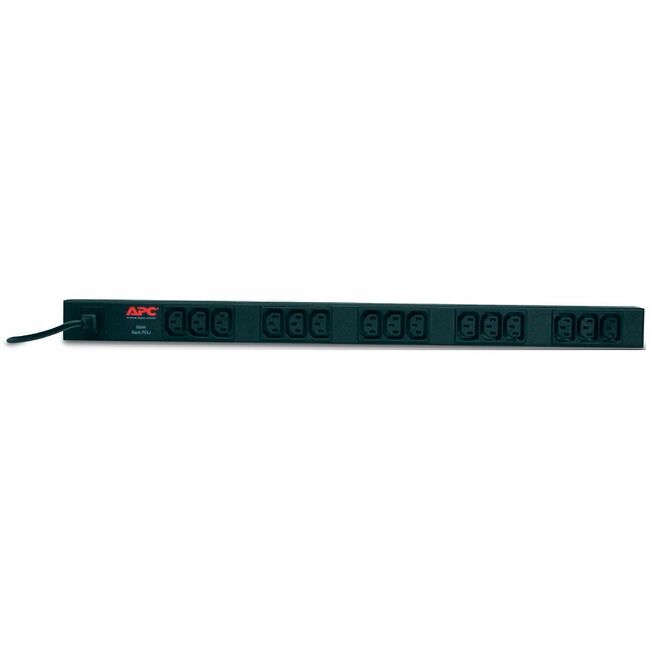

It is a basic rack PDU with a Zero U vertical mounting design. It supports a maximum input current of 10A and operates at 230V. The PDU features 15 IEC 60320 C13 outlets, providing flexibility for connecting various IT equipment. It includes a 6.5-foot power cord with an IEC 60320 C14 plug. The unit is designed for reliable power distribution and includes an installation guide, rack mounting brackets, and a toolless mounting kit.
Packaged Quantity: 1 Each
Product Type: PDU
Technical Information
PDU Type: Basic
Plug/Connector Type: IEC 60320 C14
Receptacle Type: IEC 60320 C13
Receptacle Detail: 15 x IEC 60320 C13
Power Description
Input Voltage: 120 V200 V208 V230 V240 VInput Voltage Range: 208 V AC - 240 V AC
Output Voltage: 208 V AC230 V ACPower Rating (VA): 2.30 kVA
Physical Characteristics
Color Family: Black
Product Color: Black
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Cord Length: 6.5 ft (1.98 m)
Height: 24.02" (610 mm)
Width: 1.73" (44 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 4.41 lb (2000.34 g)
Miscellaneous
Package Contents: Basic Rack 2.3kVA PDU Installation guideRack mounting bracketsToolless mounting kit
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
