Description:
General Information
Manufacturer: Schneider Electric SA
Manufacturer Part Number: AP8858
Brand Name: APC by Schneider Electric
Product Line: NetShelter
Product Series: Metered
Product Model: AP8858

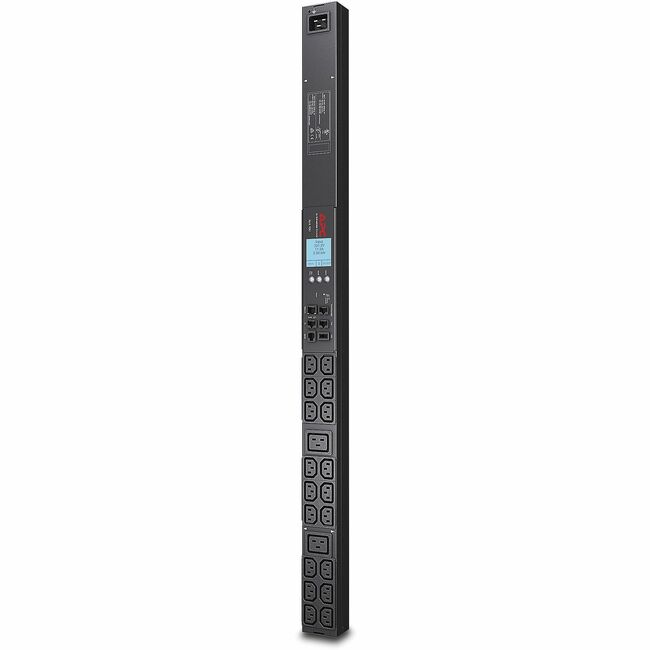

Product Name: Metered Rack AP8858 20-Outlets PDU
Marketing Information:
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC C20 inlet (no cord provided) while power comes out at 100-230 volts through (18) C13 and (2) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates
Product Type: PDU
Technical Information
PDU Type: Metered
Plug/Connector Type: IEC 60320 C20
Power Description
Input Voltage: 200 V208 V230 VOutput Voltage: 100 V AC200 V AC208 V AC230 V ACManagement
Management:
Protocols:
Physical Characteristics
Mounting Orientation: Vertical
Mount Type: Rack-mountable
Placement: Side
Rack Height: 0U
Height: 35.51" (902 mm)
Width: 2.20" (56 mm)
Depth: 1.73" (44 mm)
Weight (Approximate): 6.46 lb (2930.21 g)
Miscellaneous
Package Contents: Metered Rack AP8858 20-Outlets PDU Installation guideRack mounting bracketsSafety guideSerial configuration cable
Environmentally Friendly: Yes
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 2 Year
Additional Warranty Information: 2 years repair or replace
