Description:
General Information
Manufacturer: NetAlly
Manufacturer Part Number: LRAT-1500
Brand Name: NetAlly
Product Line: LinkRunner
Product Model: LRAT-1500

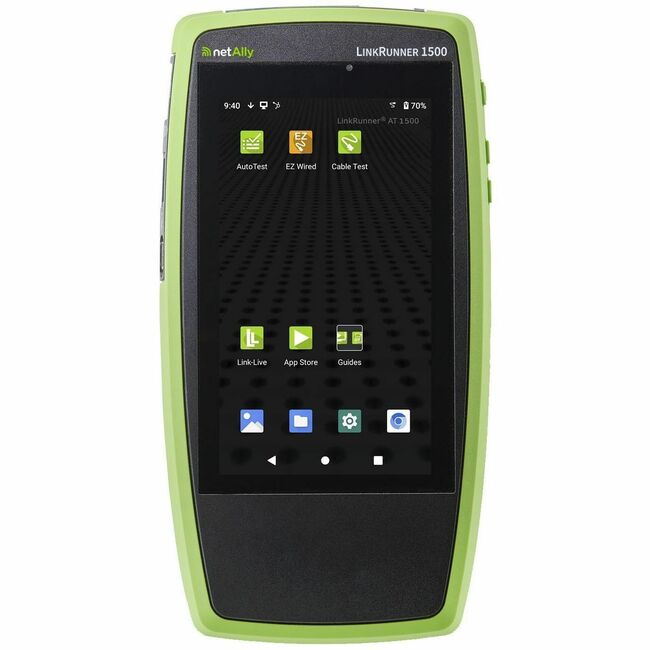

Product Name: LinkRunner AT 1500 Network Auto-tester
Marketing Information:
The LinkRunner AT 1500 is designed for frontline technicians who need fast and comprehensive validation of copper network links with powerful network connectivity troubleshooting. While offering the same core functions of its predecessor (LinkRunner AT 1000), the LinkRunner AT 1500 features a large touchscreen and in-depth AutoTest that provides deeper network visibility. With tools designed to help with network changes and troubleshooting, these network testers' quick cable test and switch identification functionality facilitates installation validation and fast problem isolation. Test results can be automatically uploaded to the Link-Live collaboration, reporting, and analysis platform to improve teamwork between network engineers and technicians, creating greater job visibility, better project control, and improved tester fleet management. Independent management plane via wired or Wi-Fi connection (with optional adapter) allows remote operation and result uploading independent of the network under test.
More from the Manufacturer
Product Type: Cable/Network Tester
Technical Information
Device Function: Cable TestingNetwork TestingNetwork TroubleshootTone DetectionPoE TestingInterfaces/Ports
USB: Yes
Network (RJ-45): Yes
Number of USB Ports: 2
Number of Network (RJ-45) Ports: 2
Media & Performance
Media Type Supported: Twisted Pair
Network & Communication
Network Standard: 1000Base-T
Ethernet Technology: Gigabit Ethernet
Display & Graphics
Display Screen Type: LCD
Battery Information
Battery Size Supported: Proprietary Battery Size
Built-in Battery: Yes
Battery Rechargeable: Yes
Battery Chemistry: Lithium Ion (Li-Ion)
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
Height: 7.72" (196.09 mm)
Width: 4.02" (102.11 mm)
Depth: 1.65" (41.91 mm)
Weight (Approximate): 1.06 lb (480.81 g)
Miscellaneous
Package Contents:
- LinkRunner at 1500 Network Auto-tester
- Power Supply with Regional Power Plugs
- Wireview Cable ID #1
- Getting Started Guide
- Small Soft Case.
Warranty
Limited Warranty: 12 Month
