Description:
General Information
Manufacturer: ERICSSON
Manufacturer Part Number: BFN3-30005GB-GN
Brand Name: CradlePoint
Product Series: E3000
Product Model: E3000-5GB

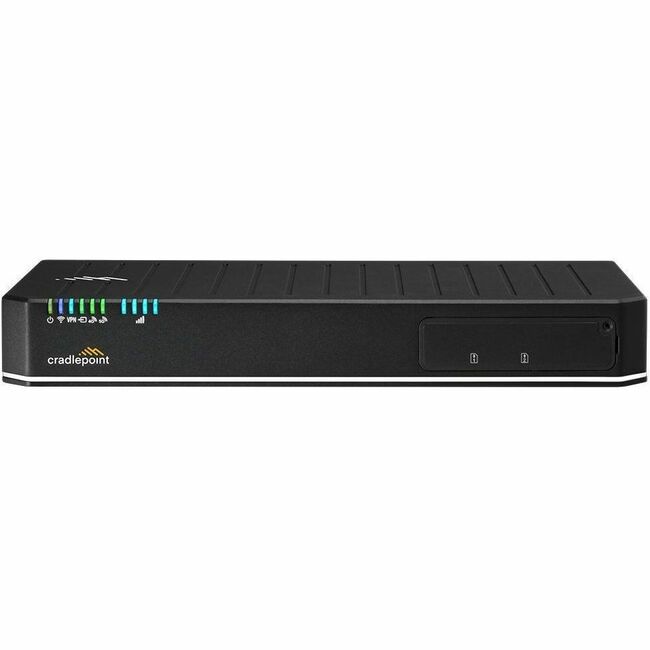

Product Name: E3000-5GB Modem/Wireless Router
Marketing Information:
The Ericsson NetCloud Service for Branch with an E3000 enterprise router is suited for fixed offices, healthcare, financial services and retail locations, ideally when combined with need for security services at scale with performance. The all-in-one form factor includes full-featured routing, security, switching with PoE ports and Wi-Fi, making it easy to connect branches to the Internet and critical applications without the need for extra hardware or complicated configurations. And the embedded LTE or 5G modem means that connectivity is always available from day one without waiting for a wired connection.
Ideal for Wireless WAN
For an all-wireless WAN, the E3000 router offers Gigabit LTE or 5G NR1 performance, which can support the throughput and service needs of an enterprise branch office or store with the ability to add a second LTE or 5G connection for increased available bandwidth and reliability. For organizations moving to a wireless WAN, the E3000 router offers the ability to pair with a wired link and use LTE or 5G as a failover connection or a primary connection.
5G Performance Embedded or Optimized
The E3000 enterprise branch router offers 5G performance in two form factors. As a router with embedded 5G, the platform ships standard with the modem as well as a second slot for dual modem capabilities. As a 5G-optimized LTE router, it has the ability to act as a controller for an Ericsson Cradlepoint 5G wideband adapter so that the modem can be placed for optimal signal coverage. The unique capability of Ericsson to operate the adapter in captive mode means that the two separate, Ethernet-connected appliances can be managed as a single entity. The two form factors ensure 5G performance in the manner that best suits the deployment needs.
Product Type: Modem/Wireless Router
Technical Information
Wi-Fi Generation: Wi-Fi 6
Network Band: Dual Band
MU-MIMO Technology: Yes
Wireless Specifications
Broadband Transmission Technology: EthernetCellularWireless LAN Standard: IEEE 802.11ax
ISM Band: Yes
UNII Band: Yes
ISM Maximum Frequency: 2.40 GHz
UNII Maximum Frequency: 5 GHz
Cellular Generation: 5G
Cellular Network Supported: LTE 2100LTE 1900LTE 1800LTE 1700LTE 850LTE 2600LTE 900LTE 700LTE 800LTE 2300LTE 1500LTE 600LTE 2000LTE 2500LTE 3500LTE 3700LTE 5200Cellular Data Connectivity Technology: LTELTE Advanced ProWCDMAUMTSHSPA+5G NRLTE Cat 20Total Wireless Transmission Speed: 443.50 MB/s
Interfaces/Ports
Total Number of Network Ports: 10
Number of Network (RJ-45) Ports: 9
USB: Yes
Number of Broadband (RJ-45) Ports: 1
I/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+Expansion SlotNetwork & Communication
Ethernet Technology: 10 Gigabit Ethernet
VPN Supported: Yes
Multi-SIM Supported: Yes
Number of SIM Card Supported: 2
SIM Size Supported: Mini
Physical Characteristics
Form Factor: Wall MountableRack-mountableDesktopHeight: 1.73" (44 mm)
Width: 12.60" (320 mm)
Depth: 6.30" (160 mm)
Weight (Approximate): 4.37 lb (1980 g)
Miscellaneous
Package Contents:
- E3000-5GB Modem/Wireless Router
- Power Supply, 54V, 3.3A, 2x2 Large, 2 Meters
- 4 x Wi-Fi Antenna, Charcoal, Dual-Band 2.4/5 GHz, RPSMA
- 4 x Cellular Antenna, Charcoal, 600 MHz - 6 GHz, SMA
- Antenna Alignment Tool
- Wall Mount Screw Pack
- Rack Mount Brackets
- Rubber Feet for Desk Mounting
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Charger Included: Yes
Warranty
Limited Warranty: Lifetime
