Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 7D7A100WNA
Brand Name: Lenovo
Product Line: ThinkSystem
Product Series: ST650 V3
Product Model: 7D7A100WNA

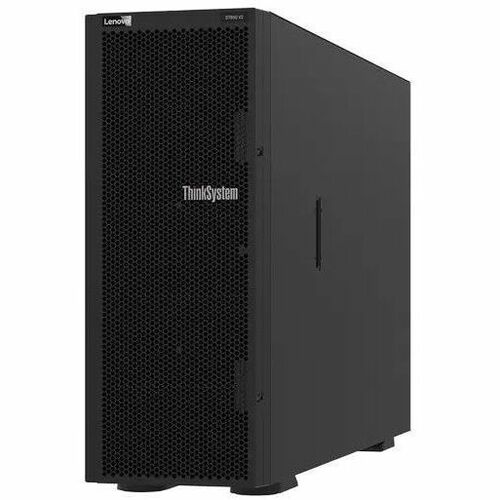

Product Name: ThinkSystem ST650 V3 7D7A100WNA Server
Marketing Information:
The Lenovo ThinkSystem ST650 V3 is an ideal 2-socket 4U tower server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The ST650 V3 is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
Product Type: Server
Processor
Number of Processors Supported: 2
Number of Processors Installed: 1
Processor Manufacturer: Intel
Processor Type: Xeon Silver
Processor Generation: 5th Gen
Processor Model: 4514Y
Processor Core: Hexadeca-core (16 Core)
Processor Speed: 2 GHz
Cache: 30 MB
Chipset
Chipset Manufacturer: Intel
Chipset Model: C741
Memory
Standard Memory: 32 GB
Maximum Memory Supported: 4 TB
Memory Technology: TruDDR5
Memory Clock Speed: 5.60 GHz
Total Number of Memory Slots: 32
Number of Occupied Memory Slots: 1
Error Checking: ECC
Signal Processing: Registered (Buffered)
Controllers
Controller Type: 12Gb/s SAS
Controller Model: 940-8i
RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, 50, 60, JBOD
I/O Expansions
Number of Total Expansion Bays: 10
Number of External 5.25" Bays: 2
Number of Internal 2.5" Bays: 8
Number of SFF Bays: 8
Hot Swappable Bays: Yes
Total Number of Expansion Slots: 9
PCI Express Details: Up to nine PCIe slots, five of which are PCIe 5.0.
Display & Graphics
Graphics Memory Capacity: 16 MB
Network & Communication
Ethernet Technology: 10 Gigabit Ethernet
Interfaces/Ports
Total Number of USB Ports: 8
Number of USB 2.0 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
VGA: Yes
Remote Management: Yes
Remote Management Controller: XClarity Controller (XCC) Platinum
Operating System
Operating System Supported: Windows Server 2019Windows Server 2022Red Hat Enterprise Linux 8.10Red Hat Enterprise Linux 9.2Red Hat Enterprise Linux 9.4SUSE Linux Enterprise Server 15 SP5Ubuntu 22.04 LTS x64SUSE Linux Enterprise Server 15 SP6Windows Server 2025Red Hat Enterprise Linux 8.8Red Hat Enterprise Linux 9.5Red Hat Enterprise Linux 9.6Red Hat Enterprise Linux 10SUSE Linux Enterprise Server 15 SP7Ubuntu 24.04 LTS x64Power Description
Input Voltage: 120 V AC230 V ACNumber of Power Supplies Supported: 2
Number of Power Supplies Installed: 1
Plug/Connector Type: C13/C14
Maximum Power Supply Wattage: 1.10 kW
Hot Swappable Power Supply: Yes
Miscellaneous
Package Contents:
- ThinkSystem ST650 V3 7D7A100WNA Server
- Power Cord
Security Features:
- Power-on Password
- Administrator's Password
- Root of Trust module supporting TPM 2.0
- Platform Firmware Resiliency (PFR)
Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification:
GREENGUARDChina Environmental Labeling Program (CELP)Energy Efficiency Certification:
China Energy Conservation Program (CECP)ENERGY STAR 4.0Energy Efficiency Compliance: Energy-related Products Directive Lot 9 (ErP Lot 9)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Physical Characteristics
Form Factor: Tower
Rack Height: 4U
Height: 18.19" (462 mm)
Width: 6.89" (175 mm)
Depth: 28.90" (734 mm)
Weight (Approximate): 86.20 lb (39100 g)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
Three-year customer-replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
