Description:
General Information
Manufacturer: Lenovo Group Limited
Manufacturer Part Number: 40BA0265US
Brand Name: Lenovo
Product Line: ThinkPad

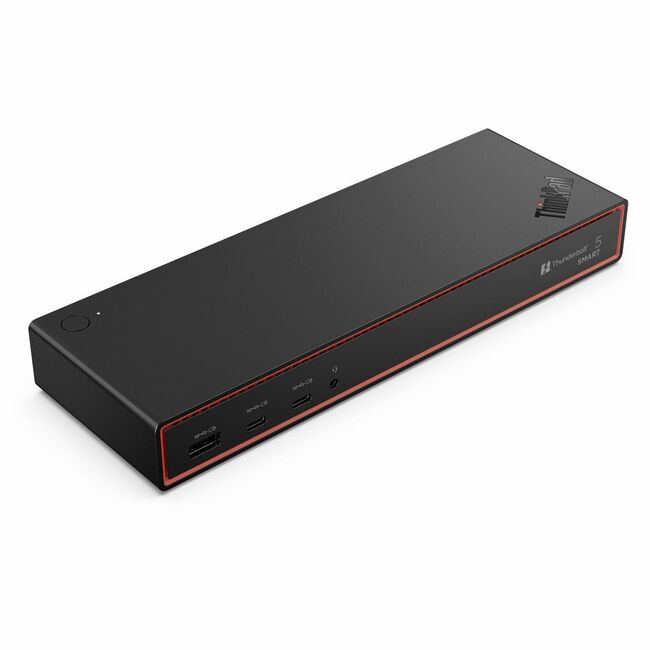

Product Name: ThinkPad Thunderbolt 5 Smart Dock 7500 - US
Marketing Information:
New Generation Docking Station Power House. The robust way to maximize productivity and the workspace, the brand new ThinkPad® Thunderbolt™ 5 Smart Dock 7500 is the flagship in our new series of docks offering a smarter way to work. Capable of driving up to three 8K 60Hz displays and up to 120Gbps data speeds, the dock ushers in the next generation of Intel® Thunderbolt™ 5 connectivity for commercial users and new generation cloud-based management console powered by AWS for IT managers.
Top Features
- The ThinkPad® Thunderbolt™ 5 Smart Dock 7500 With the Cutting-Edge Thunderbolt™ technology, makes the connectivity performance reached a new Height, with up to 120 Gbps bandwidth, you can have up to 4 Ultra High Spec display setup, either it's three Ultra-High Resolution 8K 60Hz Displays and one High Resolution 4K 60Hz or two 4K 240Hz and two 4K 120Hz High Refresh Rate monitors setup, it's all up to you, fully extend your Mobile Workstation notebook to a Power Station with all different kinds of Peripheral Devices. It supports PD 3.1 and output up to 180W to give a rapid-charge to your notebook, you can drastically expand the potential of your workspace with ease.
- Universal Dock Compatibility a cross different Operating System.
- With Lenovo™ Accessories Fleet Manager (LAFM), the New Gen Cloud-Based Intelligent Manageability runs on Web Browser, can let IT manager to Manage, Update, Configure and Diagnostic their dock fleet in a Flexible, Efficient and Convenient way at anytime, anywhere with ease.
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 4
Supported Resolutions: 7680 x 43203840 x 2160Screen Mode Supported: 8K @ 60Hz4K @ 60Hz4K @ 240Hz4K @ 120HzDevice Supported: MonitorMobile WorkstationNotebookNetwork & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: Thunderbolt 5
Total Number of USB Ports: 5
Number of USB 3.2 Gen 2 Type-A Ports: 3
Number of USB 3.2 Gen 2 Type-C Ports: 2
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 2 x USB-C data port (10Gbps data, AOU 15W)
Number of USB Type-A Ports: 3
USB Type-A: Yes
Network (RJ-45): Yes
Number of DisplayPorts: 2
DisplayPort: Yes
DisplayPort Version: 2.1
Headphone/Microphone Combo Port: Yes
Number of HDMI Ports: 1
HDMI: Yes
Thunderbolt: Yes
Thunderbolt Ports Quantity: 2
USB Power Delivery: 180W
Software
Operating System Supported: WindowsmacOSLinuxPower Description
Maximum Power Supply Wattage: 265 W
Physical Characteristics
Product Color: Eclipse Black
Height: 1.18" (30 mm)
Width: 3.15" (80 mm)
Weight (Approximate): 1.29 lb (585 g)
Miscellaneous
Package Contents:
- ThinkPad Thunderbolt 5 Smart Dock 7500 - US
- 1 x 265W AC Adapter
- 1 x Power Cord
- 1 x Warranty Poster
- 1 x Set up Poster
- 1 x LAFM Card
Kensington Security Slot: Yes
Compatibility:
Lenovo Notebooks:
- ThinkPad P1 Gen 8
- ThinkPad P16 Gen 3
- ThinkPad P16v Gen 3 (Intel)
- ThinkPad T1g Gen 8
Warranty
Limited Warranty: 3 Year
