Description:
General Information
Manufacturer: StarTech.com
Manufacturer Part Number: 150N-USB4DOCK-TRIPLE
Brand Name: StarTech.com

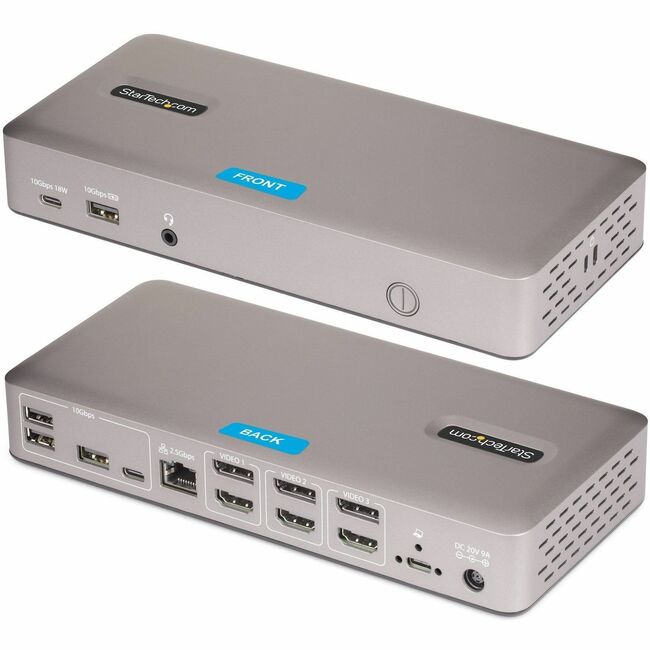

Product Name: Docking Station
Marketing Information:
Expand your workspace with a high-performance docking station that delivers triple 4K 60Hz display output, 2.5G Ethernet, and broad device connectivity, all through a single USB4 or Thunderbolt 4 connection.
High-Performance Display and Networking
Connect up to three 4K 60Hz displays via a single USB4 or Thunderbolt 4 port, leveraging full GPU capabilities without software or compression. Boost productivity with fast 2.5GbE networking, supporting PXE Boot and Wake-on-LAN for streamlined IT-managed deployments.
Comprehensive Connectivity and Power
The dock offers three video outputs (HDMI or DisplayPort), four USB-A ports (10Gbps), two USB-C ports (10Gbps and 5Gbps), and delivers up to 100W of host charging. A 180W power adapter ensures all ports operate at full capacity.
Driverless Deployment with Secure Mounting Options
Driverless setup with native Windows and ChromeOS support. Built-in lock slots and VESA or surface mounting options (accessories sold separately) provide secure, flexible installation.
Enterprise Management Tools
StarTech.com Connectivity Tools offer practical utilities to support device management and increase productivity in modern IT environments. With features like MAC address pass-through, Wi-Fi auto switch, and USB device monitoring, the software helps IT teams streamline deployment and strengthen security across diverse setups.
Visit www.StarTech.com/Connectivity-Tools to download the Enterprise Management tools.
Packaged Quantity: 1
Product Type: Docking Station
Technical Information
Connectivity Technology: Wired
Charging Capability: Yes
Number of Displays Supported: 3
Supported Resolutions: 3840 x 2160
Screen Mode Supported: 4K @ 60Hz4K @ 144Hz4KManagement Features: PXE BootWake-on-LANMAC Address Pass-throughDevice Supported: NotebookMonitorDesktop PCWorkstationNetwork & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
Host Interface: USB4
Total Number of USB Ports: 7
Number of USB 3.2 Gen 2 Type-A Ports: 4
Number of USB Type-C Ports: 2
USB Type-C: Yes
USB Type-C Detail: 2 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps)
Number of USB Type-A Ports: 4
USB Type-A: Yes
Number of RJ-45 Ports: 1
Network (RJ-45): Yes
Number of DisplayPort Outputs: 3
DisplayPort: Yes
Headphone/Microphone Combo Port: Yes
Number of HDMI Outputs: 3
HDMI: Yes
USB Power Delivery: 100W
Software
Operating System Supported: Windows 10Windows 11ChromeOSPower Description
Maximum Power Supply Wattage: 180 W
Physical Characteristics
Product Color: Space Gray
Height: 1.30" (33.02 mm)
Width: 3.80" (96.52 mm)
Weight (Approximate): 2.33 lb (1057.44 g)
Miscellaneous
Package Contents:
- Docking Station
- 1 x 3 ft [1 m] USB4 Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Quick-Start Guide
Kensington Security Slot: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: 3 Year
