Description:
General Information
Manufacturer: ROCWARE
Manufacturer Part Number: RB10
Brand Name: ROCWARE
Product Model: RB10

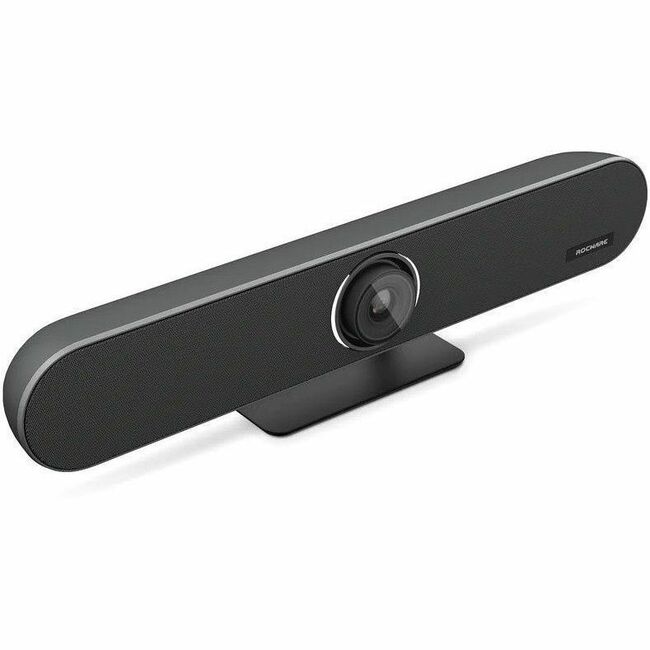

Product Name: USB Conference Bar
Marketing Information:
The RB10 is a USB video bar built for small to medium enterprise meeting rooms. It features a 4K UHD camera, digital microphone, and full-range speaker. With 20-megapixel resolution, it delivers sharp panoramic views and close-ups of participants. AI-powered video processing also helps make remote communication and collaboration easy and efficient.
Simple Connectivity with BYOD & BYOM
The built-in WiFi module lets participants easily join meetings with their own devices. It also supports wireless screen mirroring, allowing seamless sharing from computers to the device for a smoother collaboration experience.
4KClarity,Always Compatible
Equipped with a 4K UHD CMOS sensor of 1/1.8 inches and 20 million effective pixels, it outputs 4K (3840x2160) UHD resolution images and is backward compatible with resolutions such as 1080P and 720P.
Wide-Angle Clarity with 120° FoV
The lens provides a 120° wide field of view (FoV), ensuring that the entire meeting room is captured with clarity. This wide angle allows for a comprehensive view of all participants, making it ideal for group settings and larger spaces.
Packaged Quantity: 1 Each
Product Type: Video Conferencing Camera
Technical Information
Connectivity Technology: Wired/Wireless
AI-powered: Yes
Display & Graphics
Effective Resolution: 20 Megapixel
Maximum Video Resolution: 3840 x 2160
Video Formats: Motion JPEGYUY2Maximum Frame Rate: 30 fps
Image Sensor Type: CMOS
Field Of View (FOV) Angle: 120°
Screen Mode: 4K
Supported Video Modes: 2160p1080p720pLens
Digital Zoom: 5x
Network & Communication
Wireless LAN: Yes
Built-in Devices
Microphone: Yes
Interfaces/Ports
Host Interface: USB 3.0 Type C
Network (RJ-45): Yes
HDMI Out: Yes
Power Description
Input Voltage: 12 V DC
Input Current: 2 A
Physical Characteristics
Mounting Type: Table MountWallHeight: 5.31" (135 mm)
Depth: 4.61" (117 mm)
Weight (Approximate): 5.51 lb (2500 g)
Environmental Conditions
Minimum Operating Temperature: -40°F (-40°C)
Maximum Operating Temperature: 140°F (60°C)
Miscellaneous
Features: Built-in SpeakerMicrophonePTZ2D Noise Reduction3D Noise ReductionDevice Supported: ComputerSmartphoneNotebook
