Description:
General Information
Manufacturer: ViewSonic Corporation
Manufacturer Part Number: LDS138-151
Brand Name: ViewSonic
Product Model: LDS138-151

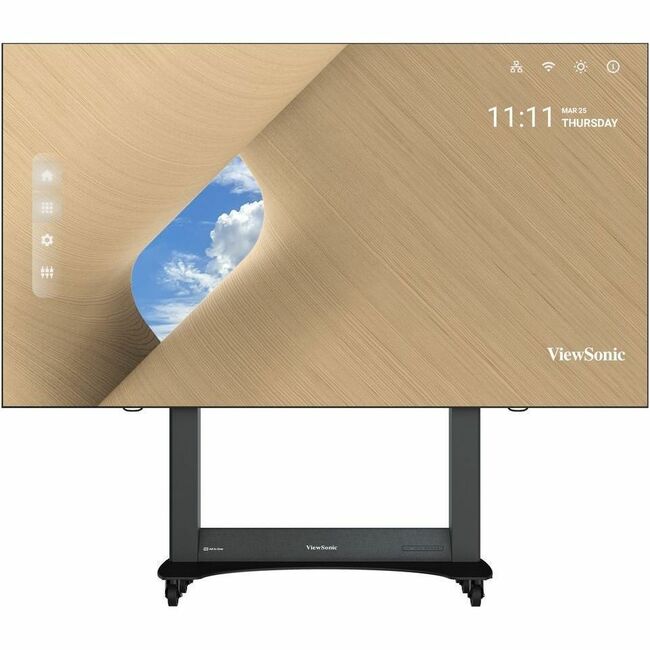

Product Name: 138" All-in-One LED Display Solution Kit
Marketing Information:
The ViewSonic® LDS138-151 is a foldable 138" All-in-One LED display that provides instant use, easy transport, and convenient operation. With a pre-assembled design and built-in motorized height adjustment, this display can be set up in just 10 minutes without wall mounting, making it ideal for large venues or spaces where renovations are not feasible. The foldable screen design significantly reduces packaging size, cutting shipping costs, improving delivery efficiency, and enabling easy transport between locations. The integrated system control box on the floor stand ensures tidy cable management and a premium, frameless visual experience. Featuring Glue-on-Board (GOB) surface treatment technology, the IP54-rated LED modules offer enhanced protection against impacts, dust, and moisture during installation and use. With its seamless large screen and dual 30W speakers, the LDS138-151 is ready to captivate audiences in environments such as high-end boardrooms, receptions, galleries, auditoriums, and other large venues.
Product Type: Collaboration Display
Display & Graphics
Screen Size: 138"
Display Screen Type: LCD
Backlight Technology: Direct View LED
Screen Mode: Full HD
Screen Resolution: 1920 x 1080
Scan Format: 1080p
Aspect Ratio: 16:9
Contrast Ratio: 6,500:1
Brightness: 600 cd/m²
Horizontal Viewing Angle: 170°
Vertical Viewing Angle: 170°
Processor & Chipset
Processor Manufacturer: Rockchip
Processor Model: RK3399
Memory
Standard Memory: 4 GB
Storage
Flash Memory Capacity: 32 GB
Audio
Speakers: Yes
Number of Speakers: 2
RMS Output Power: 60 W
Camera
Webcam: Yes
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Interfaces/Ports
HDMI: Yes
Total Number of USB Ports: 3
USB: Yes
Network (RJ-45): Yes
Audio Line Out: Yes
Serial: Yes
Software
Operating System Platform: Android
Operating System: Android 9.0 Pie
Power Description
Input Voltage: 120 V AC
Power Consumption: 1745 W
Physical Characteristics
Height: 102.30" (2598.42 mm)
Width: 10.05 ft (3063.24 mm)
Depth: 30.70" (779.78 mm)
Weight (Approximate): 511 lb (231785.70 g)
Miscellaneous
Package Contents:
- 138" All-in-One LED Display Solution Kit
- Power Cord
- Remote Control
- QSG
- 1 x LD-MK-004
- 1 x LD-MK-006
- 1 x LAN Cable (Cat 5A)
- 1 x IR Extender Cable
Energy Star: No
Country of Origin: China
TAA Compliant: No
Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty: 3 Year
