Description:
General Information
Manufacturer: QNAP Systems
Manufacturer Part Number: TS-H765EU-8G-US
Brand Name: QNAP
Product Model: TS-H765EU-8G-US

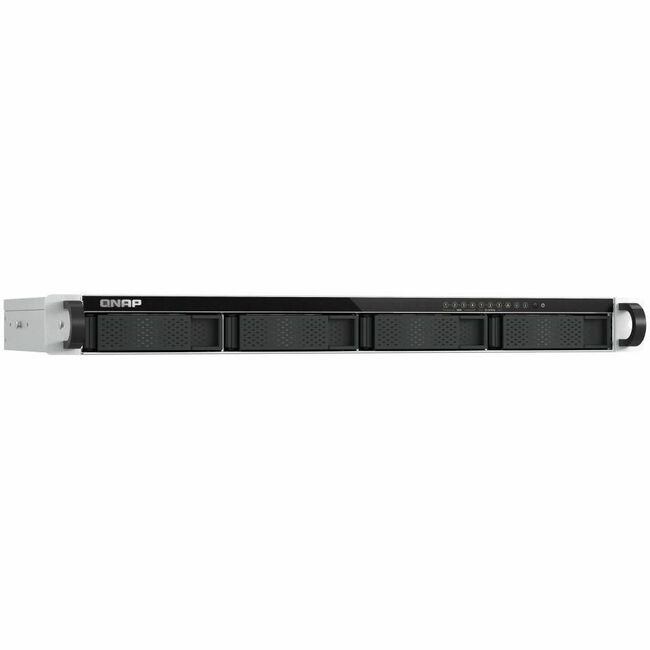

Product Name: TS-H765EU-8G-US SAN/NAS Storage System
Marketing Information:
1U short-depth design for flexible deployment
The TS-h765eU has a shorter chassis depth of only 12 inches (292.1mm), making it easy to install in small cabinets and various space-limited environments, including factories, small offices, surveillance rooms, audiovisual rooms, or in-vehicle applications.
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 4
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 4
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 8 GB
Processor & Chipset
Processor Manufacturer: Intel
Processor Type: Atom
Processor Model: x7405C
Processor Core: Quad-core (4 Core)
Memory
Standard Memory: 8 GB
Memory Technology: DDR5 SDRAM
Network & Communication
Ethernet Technology: 2.5 Gigabit Ethernet
Wireless LAN: Yes
I/O Expansions
Number of Total Expansion Bays: 4
Number of 3.5" Bays: 4
Total Number of Expansion Slots: 3
Expansion Slot Type: PCI Express
Controllers
Controller Type: Serial ATA/600Serial ATA/300RAID Supported: Yes
RAID Levels: 0, 1, 5, 6, 10, JBOD
Interfaces/Ports
Drive Interface: Serial ATA/600Serial ATA/300Total Number of USB Ports: 2
Number of USB 2.0 Ports: 1
Number of USB 3.2 Gen 2 Ports: 1
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 2
Software
Operating System: QuTS hero h5.2.3
Management & Protocols
Protocols: FTPSFTPTFTPSSL/TLSFXPNFSNFSv3NFSv4AFPCIFS/SMBSNMPv2SNMPv3IPv4IPv6SSHTelnetHTTPHTTPSTLSPPTPL2TPIPSeciSCSIDHCPDDNSLDAPPower Description
Maximum Power Supply Wattage: 150 W
Physical Characteristics
Height: 1.69" (42.93 mm)
Width: 16.93" (430.02 mm)
Depth: 11.50" (292.10 mm)
Form Factor: Rack-mountable
Rack Height: 1U
Weight (Approximate): 9.94 lb (4508.71 g)
Warranty
Limited Warranty: 3 Year
Additional Warranty Information:
The TS-h765eU is backed by a 3-year warranty at no additional cost.
0 items
):
$1,163.95
