Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: INSIGHT S285(4MM)
Brand Name: VIGI
Product Line: InSight
Product Model: S285

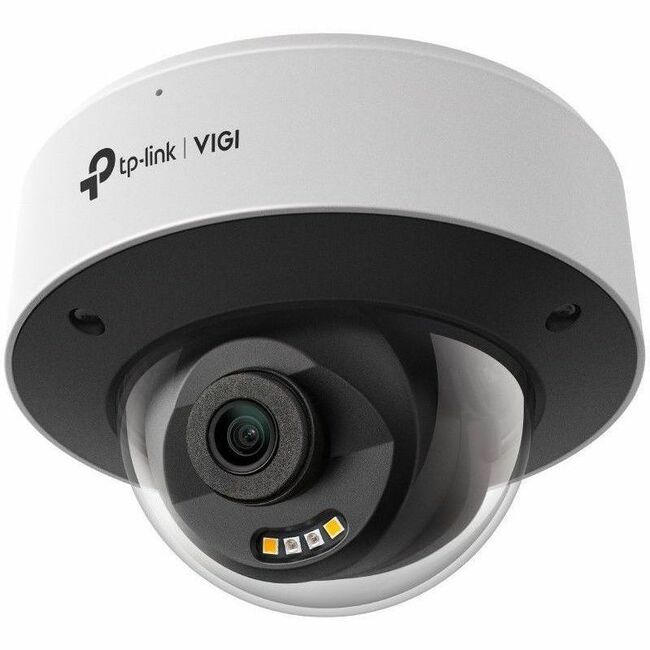

Product Name: 8MP Full-Color Dome Network Camera
Marketing Information:
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, makingpost-eventsearch faster and easier.
Human & Vehicle Classification
Distinguish humans and vehicles from other objects and receive more accurate event notifications.
Smart Video Enhancement Technology
True WDR:By analyzing and blending different exposures, True WDR ensures both bright and dark areas remain properly exposed, delivering a well-balanced and natural-looking image even in environments with high-contrast lighting.
Smart IR:Smart IR dynamically adjusts infrared lighting to prevent overexposure and glare, improve visibility at different distances, and ensure clearer footage.
3D DNR:3D DNR is a noise reduction technology that analyzes image data across frames to selectively reduce noise while preserving important details.
White Balance:White Balance ensures that white appears neutral in an image, regardless of the lighting conditions.
Efficient H.265+ Compression Technology
H.265+ reduces the required bandwidth and storage space for videos while maintaining excellent image quality. It saves 57.5% and 15% more storage space compared to H.264 and H.265, respectively
Product Type: Network Camera
Technical Information
HD Recording: Yes
Recording Formats: 4K
Night Vision: Yes
Night Vision Distance: 98.43 ft (30 m)
Night Vision Type: Infrared/Color
Number of IR LEDs: 2
Wide Dynamic Range Detail: 120 dB
AI-powered: Yes
Infrared (IR) Cut-off Filter: Yes
Display & Graphics
Image Sensor Type: CMOS
Image Sensor Size: 1/2.7"
Color Supported: Color
Field of View: Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°
Effective Camera Resolution: 8 Megapixel
Video
Video Formats: H.265+H.265H.264H.264+H.264HH.265MMaximum Video Resolution: 3840 x 2160
Maximum Frame Rate: 25 fps
Audio
Audio Support: Yes
Lens
Lens Type: Fixed
Maximum Focal Length: 4 mm (0.16")
Lens Included: Yes
Lens Mount Type: M12-mount
Maximum Aperture: f/1.6
Exposure
Shortest Shutter Speed: 1/10000 Second
Longest Shutter Speed: 1/3 Second
Network & Communication
Connectivity Technology: Wired
Remote Management: Yes
Ethernet Technology: Fast Ethernet
Protocols: TCP/IPUDPICMPHTTPHTTPSDHCPDNSRTSPNTPUPnPSSL/TLSFTPSFTPRTPIPv4IPv6ARPStorage
Storage Type: Memory Card
Interfaces/Ports
Network (RJ-45): Yes
Power Description
Maximum Power Consumption: 12.30 W
Input Voltage: 12 V DC
Power Source Type: DCPoEPhysical Characteristics
Product Material: Metal
Mount Type: Ceiling MountWall MountForm Factor: Dome
Durability: Water ProofVandal ProofHeight: 3.50" (88.90 mm)
Width: 4.80" (121.92 mm)
Length: 4.80" (121.92 mm)
Diameter: 4.80" (121.92 mm)
Weight (Approximate): 1.37 lb (620 g)
Environmental Conditions
Minimum Operating Temperature: -22°F (-30°C)
Maximum Operating Temperature: 140°F (60°C)
Minimum Storage Temperature: -40°F (-40°C)
Maximum Storage Temperature: 140°F (60°C)
Maximum Operating Humidity (Non-condensing): 95%
Maximum Storage Humidity (Non-condensing): 95%
Miscellaneous
Features:
Alarm TriggeringVehicle DetectionHuman DetectionWide Dynamic Range3D Digital Noise ReductionNoise ReductionWhite BalanceBuilt-in MicrophoneDay/NightMirrorPackage Contents:
- 8MP Full-Color Dome Network Camera
- Quick Start Guide
- Waterproof Cable Attachments
- Mounting Accessories
Impact Protection Rating: IK10
Ingress Protection Rating: IP67
