Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: SM5110LSB-10
Brand Name: TP-Link
Product Line: Omada
Product Model: SM5110LSB-10

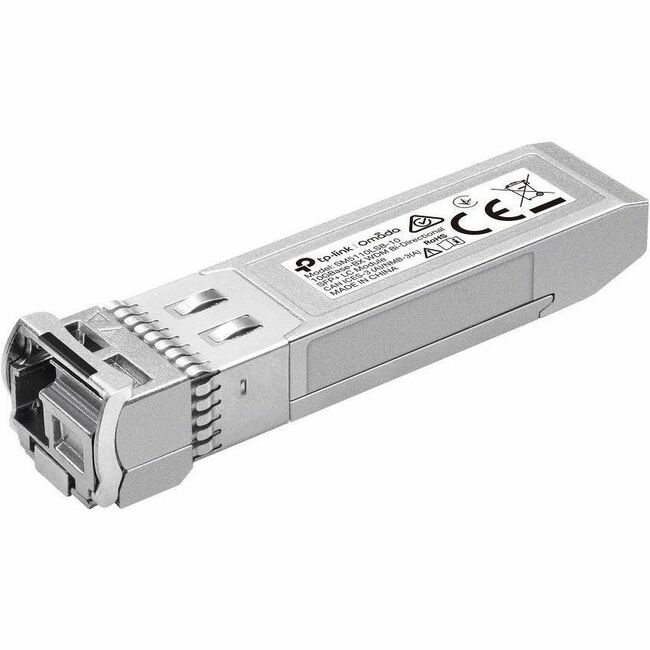

Product Name: Omada 10GBase-BX WDM Bi-Directional SFP+ LC Module
Marketing Information:
What This Product Does
The SM5110LSB-10 is designed to extend transmission distance up to 10km with a maximum rate of 10Gbps. It is a single-mode SFP+ transceiver that supports bi-directional data transmission, which is cost-saving.
Product Type: SFP+
Technical Information
Application/Usage: Data NetworkingOptical NetworkFeatures: Digital Diagnostics Monitoring Interface (DDMI)
Interfaces/Ports
Total Number of Ports: 1
Connector Type: LC/UPC
Interfaces/Ports Details: 1 x LC/UPC 10GBase-BX BiDi Simplex Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Optic Cable Core/Cladding Specification: 9/125 µm
Fiber Optic Cable Wavelength: 1270 nm1370 nmFiber Mode Supported: Single-mode
Ethernet Technology: 10 Gigabit Ethernet
Network Technology: 10GBase-BX BiDi
Maximum Distance Supported: 10 km (6.21 Mile)
Maximum Data Transfer Rate: 10.31 Gbit/s
Physical Characteristics
Form Factor: Hot-swappableHot-pluggableHeight: 0.47" (11.94 mm)
Width: 2.24" (56.90 mm)
Depth: 0.55" (13.97 mm)
Miscellaneous
Compatibility:
MSA Compliant
TP-LINK Switches:
Country of Origin: China
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)
