Description:
General Information
Manufacturer: Amer Networks, Inc
Manufacturer Part Number: AMR1AWS-B
Brand Name: Amer
Product Model: AMR1AWS-B

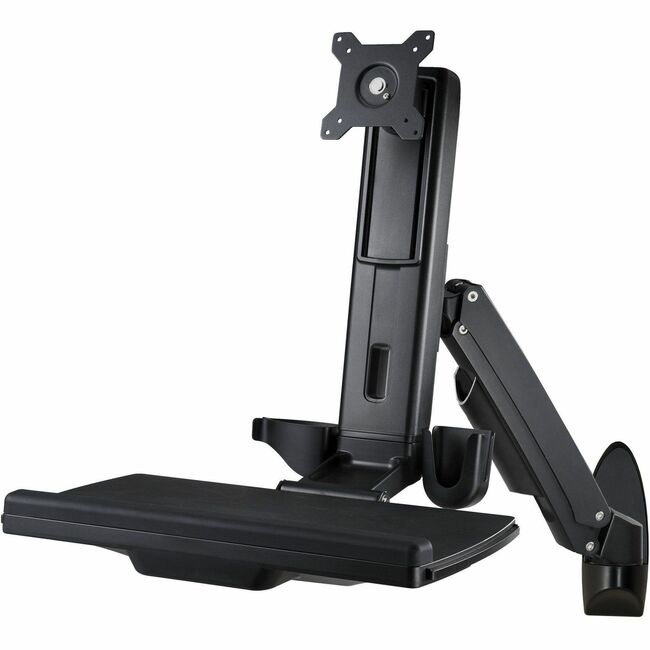

Product Name: Sit Stand Combo Workstation Wall Mount System (Black)
Marketing Information:
This Amer wall mount system provides a simple way to mount your keyboard, mouse and monitor all onto one flexible spring loaded arm. This give you the ability to easily move your workstation into position where you need it and in the position it is needed. In addition to the ability to move up and down as well as side to side, the screen can be moved raised, lowered as well as rotated and tilted. When additional space is required, this sit stand workstation wall mount can be made compact by folding the keyboard tray providing the room needed for other important task.
Amer's articulating mounts support a wide variety of monitor sizes, including :
Up to 32" wide screen (16:9)
Up to 32" Ultra wide screen (21:9)
Up to 32" Curved Monitor (1800R)
Product Type: Wall Mount
Product Information
Device Supported: WorkstationMonitorKeyboardMouseDisplay ScreenFlat Panel DisplayNumber of Displays Supported: 1
Minimum Load Capacity: 4.41 lb (2000 g)
Maximum Load Capacity: 17.64 lb (8000 g)
Minimum Screen Size Supported: 24" (609.60 mm)
Maximum Screen Size Supported: 32" (812.80 mm)
Height Adjustable: Yes
Features: Extendable ArmSpring Loaded MechanismFlexibleArticulating ArmMinimum Extended Height: 4.88" (123.95 mm)
Minimum Tilt Angle: -30°
Maximum Tilt Angle: 65°
Minimum Swivel Angle: -90°
Maximum Swivel Angle: 90°
Maximum Rotate Angle: 360°
Mount Function: TiltSwivelRotateWall MountMount Surface: Wall
Physical Characteristics
Color Family: Black
Product Color: Black
Product Material: SteelPlasticAluminumVESA Mount Compatible: Yes
Mounting Pattern: 100 x 10075 x 75Form Factor: Wall Mountable
Height: 36.46" (926 mm)
Width: 37.64" (956 mm)
Depth: 13.11" (333 mm)
Weight (Approximate): 20.41 lb (9260 g)
Miscellaneous
Application/Usage: Wall
Warranty
Limited Warranty: 3 Year
