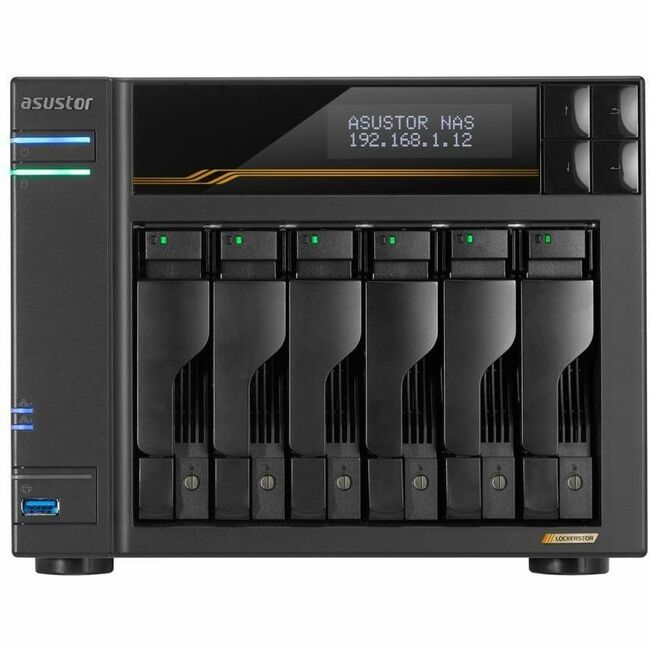

ASUSTOR LOCKERSTOR 6 Gen3 AS6806T SAN/NAS Storage System


ASUSTOR LOCKERSTOR 6 Gen3 AS6806T SAN/NAS Storage System

Price (CDN): $1,796.95

Product Availability: In Stock!

This item is in stock and will ship as soon as possible. Usually ships same day.

  • ATS LOWEST PRICE GUARANTEE
  • ATS SAFE SHOPPING GUARANTEE
  • FREE SHIPPING OVER $99.00

READY TO BUY?

Price (CDN) : $1,796.95

Quantity:




Description:
General Information
Manufacturer: ASUSTOR
Manufacturer Part Number: AS6806T
Brand Name: ASUSTOR
Product Line: LOCKERSTOR 6 Gen3
Product Model: AS6806T
Product Name: LOCKERSTOR 6 Gen3 AS6806T SAN/NAS Storage System
Marketing Information:

Ryzen Up to the Challenge!

AMD's Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.

Server-grade ECC memory

ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.

Speeds keep Ryzen and Ryzen!

The Lockerstor Gen3 series is ASUSTOR's fastest NAS ever! The combination of AMD's Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.

PCI Express 4.0 Brings Doubled Performance

The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs to accelerate tasks that require high random IO performance to save unbelievable amounts of time in applications that can take advantage of SSDs, such as content creation. Each M.2 slot for NVMe SSDs is tool-free for easier installation while the cooling vents ensure SSDs run at optimum performance.

USB4 is More Than Just Storage

The Lockerstor Gen3 is equipped with two high-speed USB4 ports, offering ultra-fast speeds of up to 40 Gbps. The USB4 ports are compatible with Thunderbolt 3/4 devices, allowing you to transfer, store, archive, and back up faster than ever.

When connecting two ASUSTOR NAS units using the USB4 ports, fast data transfers, synchronizations, and backups can be achieved without using the network ports. Paired with features like DataSync Center and SMB Backup, this can help significantly reduce back up time.

The Hottest NAS Ever is also the Coolest

With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.

Exclusive MyArchive Cold Backup Technology | Unlimited Capacity Expansion

MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.

Protected From the Inside and Out

Protect your data from loss, damage and attacks with the ASUSTOR NAS. An ASUSTOR NAS is better protected by running the Linux-based ADM, employing a built-in firewall, ClamAV Antivirus, MyArchive and ADM's various backup tools help protect ransomware even better.

Network Attack Protection

  • Firewall
  • ADM Defender
  • Cloud Backup Center offsite backups

Secure Data Transmission

  • VPN connection
  • SSL certificate connection
  • Automatic logout

Internal Data

  • AES-256 folder encryption
  • Antivirus software
  • MyArchive

Access Control

  • File/folder/app isolation
  • 2-Step Verification
  • Wake-on-LAN (WOL)
  • Wake-on-WAN (WAN)

More from the Manufacturer


Packaged Quantity: 1
Product Type: SAN/NAS Storage System
Storage
Number of Hard Drives Supported: 6
Number of Hard Drives Installed: 0
Number of Solid State Drive Supported: 6
Number of Solid State Drive Installed: 0
Flash Memory Capacity: 8 GB
Processor & Chipset
Processor Type: Ryzen Embedded
Processor Model: V3C14
Processor Core: Quad-core (4 Core)
Processor Speed: 2.30 GHz
Memory
Standard Memory: 16 GB
Memory Technology: DDR5 SDRAM
Network & Communication
Ethernet Technology:
  • 10 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • I/O Expansions
    Number of Total Expansion Bays: 6
    Number of 2.5"/3.5" Bays: 6
    Total Number of Expansion Slots: 1
    Expansion Slot Type: PCI Express 4.0 x4
    Controllers
    Controller Type: Serial ATA/600
    RAID Supported: Yes
    RAID Levels: 0, 1, 5, 6, 10, JBOD
    Interfaces/Ports
    Drive Interface: Serial ATA/600
    Total Number of USB Ports: 5
    Number of USB 3.2 Gen 2 Ports: 3
    Number of USB4 Ports: 2
    Network (RJ-45): Yes
    Number of Network (RJ-45) Ports: 4
    Software
    Operating System: ADM 5.0
    Management & Protocols
    Protocols:
  • TCP/IP
  • SMTP
  • HTTPS
  • LDAP
  • SFTP
  • SSH
  • FTPS
  • AFP
  • RTSP
  • FTP
  • SMB 2.0
  • IPv4
  • WEBDAV
  • SSL
  • iSCSI
  • SNMP
  • TLS
  • HTTP
  • TFTP
  • NFS
  • UPnP
  • RSync
  • DDNS
  • CIFS/SMB
  • IPv6
  • SMB 3.0
  • Power Description
    Number of Power Supplies Installed: 1
    Maximum Power Supply Wattage: 250 W
    Physical Characteristics
    Height: 7.30" (185.50 mm)
    Width: 9.17" (233 mm)
    Depth: 9.06" (230 mm)
    Form Factor: Desktop
    Weight (Approximate): 10.14 lb (4600 g)
    Miscellaneous
    Package Contents:
    • LOCKERSTOR 6 Gen3 AS6806T SAN/NAS Storage System
    • Quick Installation Guide
    • 1 x AC Power Cord
    • 4 x 10GbE LAN Cable(Cat 6a)
    • 24 x Flat Head Screw (for 3.5" HDD)
    • 24 x Flat Head Screw (for 2.5" HDD)

    Warranty
    Limited Warranty: 3 Year
