Description:
General Information
Manufacturer:  Sharp Electronics
Manufacturer Part Number:  M431-2
Brand Name:  Sharp
Product Line:  MultiSync
Product Series:  M
Product Model:  M431-2

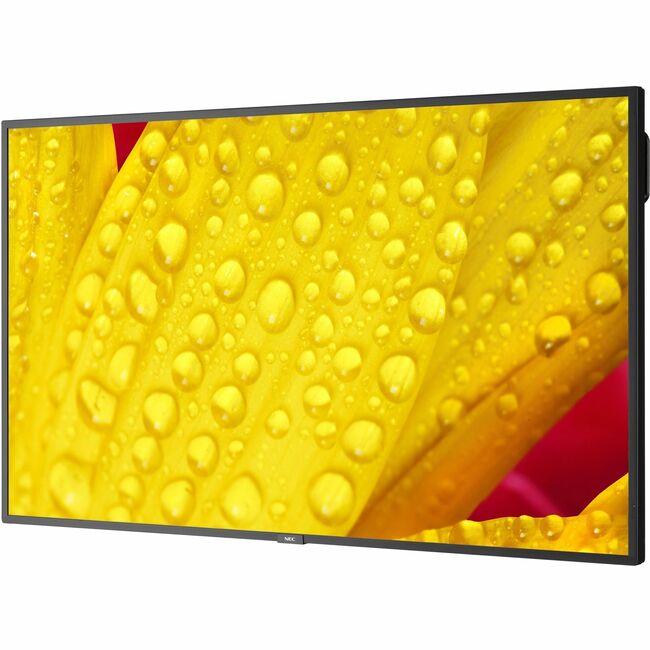

Product Name:  43" Ultra High Definition Professional Display
Marketing Information:
Create pixel-perfect imagery with the high-end panel quality of the fully professional NEC M Series large format displays. By focusing on customer needs while also offering professional reliability, the M series displays give customers a digital signage display lineup without all the costs. The M series can support both landscape and portrait orientations while also allowing the modularity possibilities to customize their needs dependent on their application and use. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Simple and targeted connectivity options allow customers to have the up-to-date options that they need while not having to overpay for excess and unused interfaces. The NEC M series boasts 500 cd/m² brightness which is ideal for a majority of digital signage applications in corporate, higher education, restaurant, retail and grocery store environments when the focus should be on the message, not the budget. Share your message, your way.
-   4K UHDnative resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
 -   Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
 -   Accepts Intel® Smart Display Module Small or Large allowing for sleek all-in-one intelligence and interoperability in a small form factor setting by accepting Intel processor-based products and other peripherals directly into the displays*
 -   Raspberry Pi Compute Module 4 allows for future proof expansion directly into the display
 -   Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
 -   500 cd/m2 brightness and HDR compatibilty will capture the attention of audience in almost any situation
 -   Integrated Media Player allows for audio, video or image playback via USB
 -   24/7 commercial runtimes with built-in real-time clock and full scheduler capabilities
 -   Failover Capabilitieswith full Input Detect functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
 -   Energy Star 8.0 Certified Product
 -   Full 3 year commercial warranty to allow for peace of mind and protection of your investment
 -   NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations

Product Type:  Digital Signage Display
 Technical Information
Bezel Width (Top):  0.55" (13.90 mm)
Bezel Width (Bottom):  0.55" (13.90 mm)
Bezel Width (Left):  0.55" (13.90 mm)
Bezel Width (Right):  0.55" (13.90 mm)
Panel Technology:  In-plane Switching (IPS) Technology
Operation Hours:  24 Hours/7 Days
Display & Graphics
Number of Screens:  1
Viewable Screen Size:  43" (1092.20 mm)
Display Screen Type:  LCD
High Dynamic Range (HDR):  Yes
High Dynamic Range (HDR) Type:  PQHLGHDR10Response Time:  8 ms
Display Resolution:  3840 x 2160
Orientation:  Landscape/Portrait
Backlight Technology:  Direct LED
Aspect Ratio:  16:9
Video
Scan Format:  2160p
Dynamic Contrast Ratio:  8,000:1
Brightness:  500 cd/m²
Network & Communication
Ethernet:  Yes
Interfaces/Ports
USB:  Yes
HDMI:  Yes
DisplayPort:  Yes
Serial:  Yes
Number of HDMI Inputs:  2
RS-232C Input:  Yes
Number of HDMI 2.0 Ports:  2
Physical Characteristics
VESA Mount Standard:  200 x 200
Mount Type:  Wall MountableTable MountHeight:  22.09" (561.20 mm)
Width:  38.31" (973 mm)
Depth:  2.46" (62.60 mm)
Weight (Approximate):  30.64 lb (13900 g)
Environmental Conditions
Minimum Storage Temperature:  -4°F (-20°C)
Maximum Storage Temperature:  140°F (60°C)
Minimum Operating Humidity:  20%
Maximum Operating Humidity:  80%
Minimum Storage Humidity:  10%
Maximum Storage Humidity:  80%
Miscellaneous
Package Contents:
-   43" Ultra High Definition Professional Display
 -   3m Power cord
 -   2.0m HDMI cable
 -   Wireless remote control
 -   Batteries

Application/Usage:
RestaurantRetailGrocery StoreEducationCommercialProfessional Audio/VideoEnergy Star:  Yes
Energy Efficiency Certification:  ENERGY STAR 8.0
Country of Origin:  China
 Warranty
Limited Warranty:  3 Year
