Description:
General Information
Manufacturer: LG Electronics
Manufacturer Part Number: 49XS4P-B
Brand Name: LG
Product Series: XS4P
Product Model: 49XS4P-B

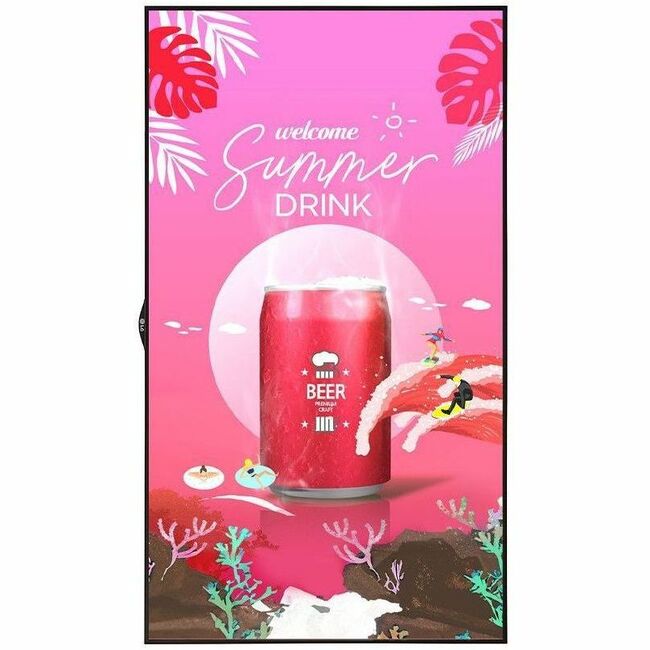

Product Name: 49'' FHD High Bright Window Facing Display with Anti-Discoloration Technology
Marketing Information:
Attract Passing Customers with a Bright Display Presented Through a Window | World's First UL Verification for Display Anti-Discoloration Characteristics
By focusing on the pain points of our customers, we obtained the world's first UL Verification for Display Anti-Discoloration Characteristics. Our new technology helps prevent 'screen-yellowing', while safeguarding display quality and performance stability.
Window-facing Display
LG offers advanced technical solutions for cost-effective operations. The XS4P can maintain an astonishing brightness of 4,000 nits, yet has lower power consumption compared to RGB panels at the same brightness level.
Brightness Beyond the Window
A window-facing display requires higher nits, as it is exposed to direct sunlight through a window. The XS4P is designed especially for window-facing environments, providing brilliant brightness. Vibrant and dynamic content displayed through the window will attract customers to your business, despite the viewers wearing polarized sunglasses.
High-performance with webOS 6.0
Quad Core SoC (System-on-Chip) can execute several tasks at the same time without a separate media player. In addition, webOS 6.0 platform enhances not only user convenience with intuitive UI but also web-app integration with updated Node JS / Chromium version.
Remotely Managed, Real-time Mastery (Content Manager)
A significant advantage of window-facing displays over temporary displays is their ability to effortlessly manage frequently changing promotional content and pricing information. LG's web-based content solution is intuitive and user-friendly, providing users with complete access to current and historical data anytime, anywhere, through their mobile devices. This allows users to monitor, adjust, and control the unit remotely in real-time.
Wide Range of Operating Temperature
The XS4P can be used under a wide range of operating temperature from 0? to 40?.
Conformal Coating
The conformal coating with dust protection shields the circuit and power boards from dust, metal particles, moisture, and other contaminants, providing solid durability and long-term reliability.
Upgraded Quite Mode
The XS4P addresses concerns about display noise. It features an Upgraded Quiet Mode that operates at 2,500 nits with minimal fan noise.
Professional Content Partners
Pairing the XS4P Series with LG SW solutions would enhance its utilization.
Convenient Installation with Calculated Precision
The XS4P is equipped with a Leveler Tool that shows users the tilt of the device, allowing for precise display installation. Additionally, the Horizontal Sensor Tool assists users in verifying the correct installation direction. The XS4P even provides warning messages for proper installation if it is installed incorrectly.
Product Type: Digital Signage Display
Technical Information
Panel Technology: In-plane Switching (IPS-M+) Technology
Operation Hours: 24 Hours/7 Days
Maximum Heat Generation: 1349.4 kJ
On Screen Display (OSD) Languages: EnglishFrenchGermanSpanishItalianKoreanSimplified ChineseTraditional ChinesePortuguesePortuguese (EU)SwedishFinnishNorwegianDanishRussianJapaneseDutchCzechGreekArabicTurkishDisplay & Graphics
Number of Screens: 1
Viewable Screen Size: 49" (1244.60 mm)
Display Screen Type: LCD
Response Time: 8 ms
Display Resolution: 1920 x 1080
Orientation: Landscape/Portrait
Backlight Technology: Direct LED
Aspect Ratio: 16:9
Maximum LED Life: 5.7 Year
Video
Scan Format: 1080p
Native Contrast Ratio: 1,300:1
Dynamic Contrast Ratio: 500,000:1
Brightness: 4000 cd/m²
Color Gamut: 68% NTSC
Network & Communication
Ethernet: Yes
Wireless LAN: Yes
Bluetooth: Yes
Interfaces/Ports
USB: Yes
HDMI: Yes
DisplayPort: Yes
Serial: Yes
Number of HDMI Inputs: 2
RS-232C Input: Yes
RS-232C Output: Yes
Software
Operating System: webOS 6.0
Power Description
Input Voltage: 120 V AC230 V ACPhysical Characteristics
Bezel Color: Black
VESA Mount Standard: 600 x 400
Height: 24.66" (626.40 mm)
Width: 43.02" (1092.70 mm)
Depth: 3.29" (83.50 mm)
Weight (Approximate): 45.86 lb (20800 g)
Environmental Conditions
Minimum Operating Temperature: 32°F (0°C)
Maximum Operating Temperature: 104°F (40°C)
Minimum Operating Humidity: 10%
Maximum Operating Humidity: 80%
Miscellaneous
Package Contents:
- 49'' FHD High Bright Window Facing Display with Anti-Discoloration Technology
- Remote Controller
- Power Cord
- HDMI Cable
- Manual (EIG, IG)
- IR Receiver (w/ Ambient Light Sensor)
- RS-232C Adapter
- IR Sheet
Application/Usage:
BusinessCommercialEnergy Star: No
Energy Efficiency Compliance: Energy-related Products Directive (ErP)
Warranty
Limited Warranty: 3 Year
