Description:
General Information
Manufacturer: Kingston Technology Company
Manufacturer Part Number: KF564C32BBE-16
Brand Name: Kingston
Product Line: FURY Beast

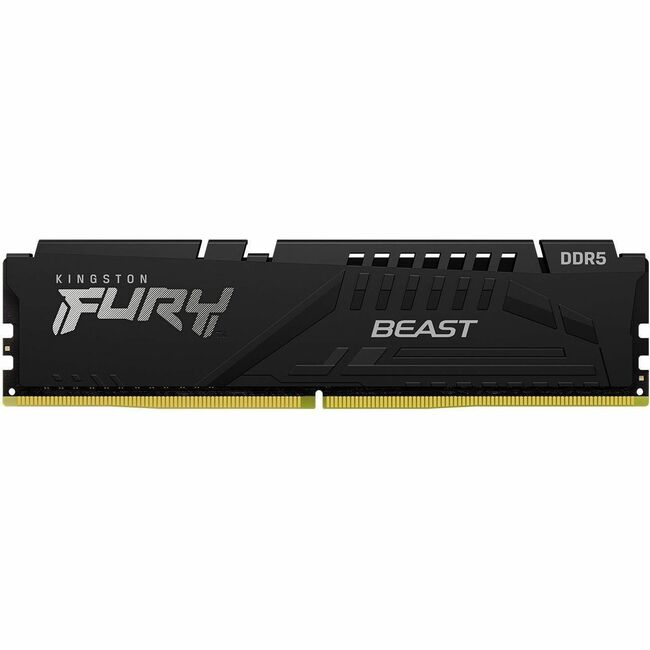

Product Name: 16GB (1x16GB) DDR5 6400MT/s CL32 FURY Beast Black EXPO
Marketing Information:
Kingston FURY KF564C32BBE-16 is a 2G x 64-bit (16GB) DDR5-6400 CL32 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6400 at a low latency timing of 32-39-39 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:
FACTORY TIMING PARAMETERS
- Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V
- EXPO Profile #0: DDR5-6400 CL32-39-39 @1.4V
- EXPO Profile #1: DDR5-6000 CL30-36-36 @1.4V
- XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V
- XMP Profile #1: DDR5-6400 CL32-39-39 @1.4V
- XMP Profile #2: DDR5-6000 CL30-36-36 @1.4V
FEATURES
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- Height 1.37" (34.9mm), w/heatsink
Product Type: RAM Module
Technical Information
Memory Size: 16 GB
Memory Technology: DDR5 SDRAM
Memory Voltage: 1.40 V
Number of Modules: 1 x 16GB
Memory Speed: 6400 MHz
Memory Standard: DDR5-6400/PC5-51200
Memory Rank: Single-rank
Error Checking: Non-ECC
Signal Processing: Unbuffered
CAS Latency: CL32
Physical Characteristics
Number of Pins: 288-pin
Form Factor: DIMM
Thickness: 0.26" (6.62 mm)
Width: 1.37" (34.90 mm)
Length: 5.25" (133.35 mm)
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: Hazard Assessment of Perfluorooctane Sulfonate (PFOS)
Environmental Compliance: Restriction of Hazardous Substances (RoHS)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Waste Electrical and Electronic Equipment Directive (WEEE)Warranty
Limited Warranty: Lifetime
0 items
):
$148.95
