Description:
General Information
Manufacturer: TP-LINK Technologies Co., Ltd
Manufacturer Part Number: DS105GP
Brand Name: TP-Link
Product Line: Omada
Product Model: DS105GP

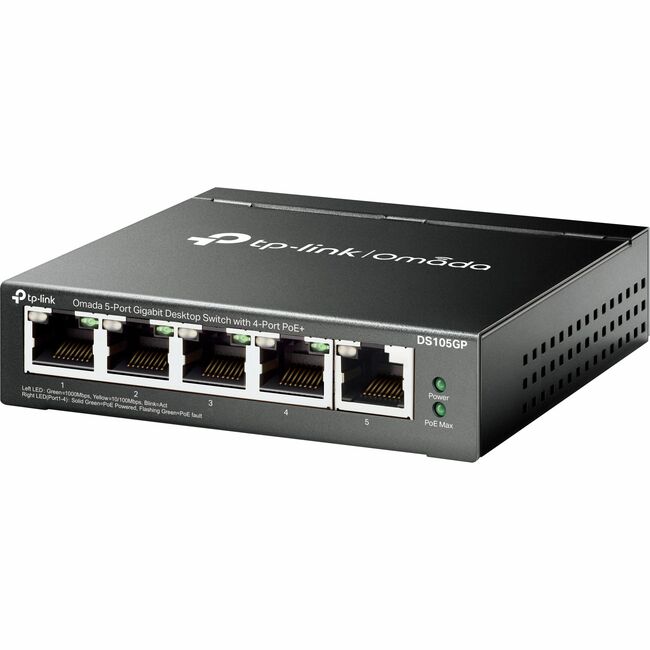

Product Name: Omada DS105GP 5-Ports Unmanaged Ethernet Switch
Marketing Information:
- 5 +10/100/1000 Mbps RJ45 ports
- With four PoE+ ports, transfers data and power on one single cable
- Works with IEEE 802.3af/at compliant PDs
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE Power up to 30 W for each PoE port
- Supports PoE Power up to 65 W for all PoE ports
- Up to 250m (820ft) data and power transmitting range under Extend Mode
- PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
- Plug and Play. No configuration or central management required.
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 5
Network (RJ-45): Yes
Port/Expansion Slot Details: 5 + 10/100/1000BASE-T RJ45 Network Ports
Media & Performance
Media Type Supported: Twisted Pair
Ethernet Technology: Fast EthernetGigabit EthernetNetwork Technology: 10/100/1000Base-T
Maximum Data Transfer Rate: 125 MB/s
Network & Communication
Networking Standards: IEEE 802.3afIEEE 802.3atIEEE 802.1pIEEE 802.3xManagement & Protocols
Manageable: No
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 65 W
Input Voltage: 53.5 V DC
Power Source: Power Adapter
Power Consumption: 74.54 W
Physical Characteristics
Form Factor: Wall MountableDesktopHeight: 1" (25.40 mm)
Width: 3.90" (99.06 mm)
Depth: 3.90" (99.06 mm)
