Description:
General Information
Manufacturer: StarTech.com
Manufacturer Part Number: SFP25GLRSCST
Brand Name: StarTech.com

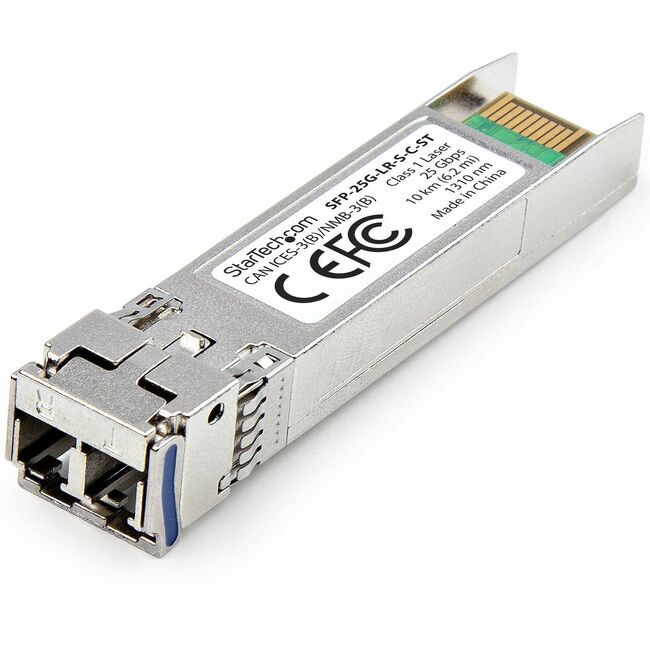

Product Name: SFP28 Module
Marketing Information:
This fiber optic transceiver is the direct equivalent to Cisco SFP-25G-LR-S for 25Gbps connectivity up to 10km (6.2mi) over LC-terminated Single Mode Fiber (SMF) cable. The optical module has been programmed and tested for seamless integration with Cisco switches and routers to ensure compatibility and reliability.
The 25GbE SFP28 excels in bandwidth-intensive tasks such as virtualization, efficient data migrations, high-performance storage, high-performance computing (HPC), future-proofing a network, and rapid online content uploads.
- 25GBASE-LR SFP28
- Data Rate: 25Gbps
- Fiber Type: Single Mode Fiber (SMF)
- Connector: LC
- Wavelength: 1310nm Tx/Rx
- Distances: Up to 10km (6.2mi)
- Supports Digital Diagnostics Monitoring (DDM/DOM)
This MSA-compliant SFP works with network equipment manufactured by Cisco and network equipment from manufacturers that accept uncoded optical modules.
The Long Range (LR) capability facilitates long-distance connections across or under large buildings, urban and rural network installations, and strategic singlemode fiber cable runs.
Product Type: SFP28
Packaged Quantity: 1
Technical Information
Application/Usage: Data NetworkingOptical NetworkInterfaces/Ports
Total Number of Ports: 2
Connector Type: LC
Interfaces/Ports Details: 2 x Full Duplex LC 25GBase-LR Network
Media & Performance
Media Type Supported: Optical Fiber
Fiber Mode Supported: Single-mode
Ethernet Technology: 25 Gigabit Ethernet
Network Technology: 25GBase-LR
Maximum Distance Supported: 10 km (6.21 Mile)
Maximum Data Transfer Rate: 25.78 Gbit/s
Physical Characteristics
Height: 0.30" (7.62 mm)
Width: 0.50" (12.70 mm)
Length: 2.20" (55.88 mm)
Weight (Approximate): 7.10 oz (201.28 g)
Miscellaneous
Compatibility:
- MSA Compliant
- Cisco switches and routers
Environmentally Friendly: Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE) Warranty
Limited Warranty: Lifetime
