General Information

---

Manufacturer: Vertiv
Manufacturer Part Number: VA4N11A0
Brand Name: Vertiv Geist
Product Line: Geist Upgradeable
Product Series: N
Product Model: AN03E1R5-10S153-1ST5ST5A011-D

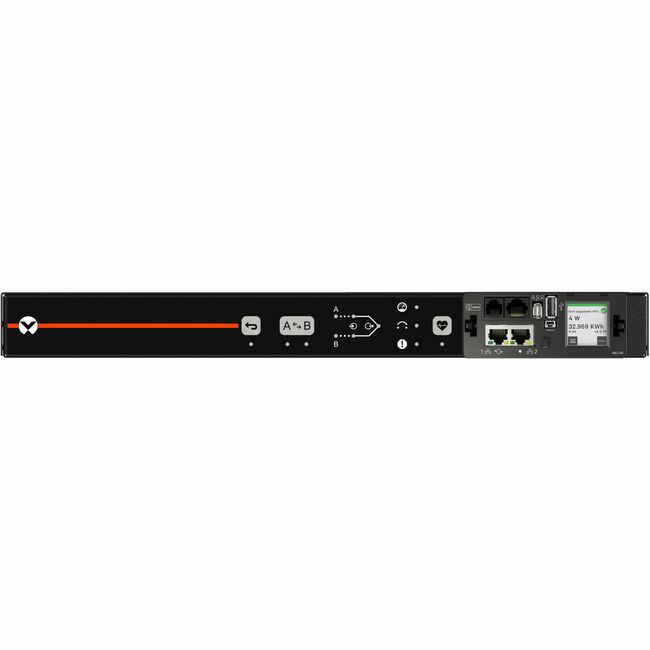

Product Name: GU VA4N11A0 PDU
Marketing Information: The Vertiv Geist Rack Transfer Switch VA4N11A0 is a 15A, 120V, single phase unit level monitored rPDU with (10) NEMA 5-15R Receptacles and (2) NEMA 5-15P plug that provides 1.4kW of power capacity. This unit provides backup power to single-corded devices and helps ensure continuity in the event of power loss. It quickly detects power loss on the main source and automatically switches to the secondary source within less than 4 to 8 milliseconds. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.

More from the Manufacturer

Product Type: PDU

Technical Information

---

PDU Type: Monitored
Phase: Single Phase
Plug/Connector Type: NEMA 5-15P
Plug/Connector Detail: 2 x NEMA 5-15P
Receptacle Type: NEMA 5-15R
Receptacle Detail: 10 x NEMA 5-15R
Features:

LCD Display

Touch Screen Display

Load Capacity (Watt): 1.40 kW

Power Description

---

Input Voltage: 120 V AC
Input Voltage Range: 100 V AC - 120 V AC
Output Voltage Range: 100 V AC - 120 V AC
Power Rating (Watt): 1.40 kW
Input Current: 15 A

Management

---

Management:

DHCP

HTTP

HTTPS

IPv4

IPv6

LDAP

NTP

RADIUS

RSTP

SSH

SMTP

SNMP (v1/v2c/v3)

Modbus TCP/IP

Syslog

TACACS+

Remote Outlet Switching: No

Interfaces/Ports

---

Network (RJ-45): Yes

Physical Characteristics

---

Product Color: Black
Mounting Orientation: Horizontal
Mount Type: Rack-mountable
Form Factor: Rack
Rack Height: 1U
Cord Length: 20 ft (6.10 m)
Height: 1.72" (43.69 mm)
Width: 17" (431.80 mm)
Depth: 18" (457.20 mm)
Weight (Approximate): 19 lb (8618.26 g)

Miscellaneous

---

Country of Origin: United States
TAA Compliant: Yes
Environmentally Friendly: Yes
Environmental Compliance:

China Restriction of Hazardous Substances (China RoHS)

Restriction of Hazardous Substances (RoHS)

Warranty

---

Limited Warranty: 5 Year
Additional Warranty Information: 5-year limited warranty if registered within 120 days of purchase, otherwise warranty defaults to 3 years
