Description:
General Information
Manufacturer: Sharp Electronics
Manufacturer Part Number: NPPA1705ULW
Brand Name: Sharp
Product Model: NP-PA1705UL-W

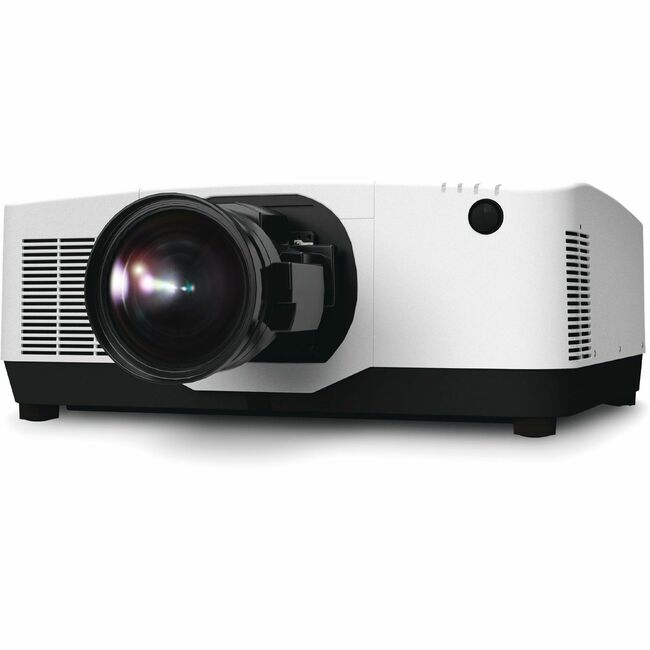

Product Name: 17,000-Lumen Professional Installation Projector with 4K Support
Marketing Information:
NEC's PA1705UL-W (white cabinet) is a 16,000-lumen (Center: 17,000lm) LCD laser projector with advanced professional installation features for higher education and corporate users. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet power and various control signals. HDBaseT Repeater allows cascading of the signal for edge-blending or stacking applications.
- 4K Ready - Display stunning 4K 60P content using NEC's proprietary high performance video processing/scaling chip from "Ultra HD Blu-ray" and "4K TV broadcasting" without the loss of critical details.
- Learning of basic control of competitors product reducing the need for reprogramming of a control system. (call Sharp for complete list)
- Integrated software applications such as AMX Beacon, Crestron Roomview, Extron XTP and PJ link allow for complete interactivity and control.
- 16,000-lumen (Center: 17,000lm) brightness provides brilliant images in most high ambient lighting situations.
- ProAssist is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.
Product Type: LCD Projector
Technical Information
Projection Method: FrontRearCeilingFront CeilingRear CeilingDisplay & Graphics
Maximum Resolution: 4096 x 2160
Native Aspect Ratio: 16:10
Projection Lens
Minimum Diagonal Image Size: 64" (1625.60 mm)
Maximum Diagonal Image Size: 41.67 ft (12700 mm)
Minimum Projection Distance: 26.04" (661.42 mm)
Maximum Projection Distance: 262 ft (79857.60 mm)
Lamp
Number of Lamps: 1
Lamp Type: Laser
Normal Mode Lamp Life: 20000 Hour
Standard Mode Brightness: 17000 lm
Contrast Ratio: 3,000,000:1
Video
Video Signal Format: NTSCNTSC 4.43PALPAL 60PAL MPAL NSECAMVideo Signal Standard: HDTV
Output Scan Format: 2160p
Interfaces/Ports
HDMI: Yes
SDI Standard: 3G-SDI
USB: Yes
Network (RJ-45): Yes
Power Description
Operating Power Consumption: 1.03 kW
Physical Characteristics
Product Color: White
Form Factor: Floor MountableCeiling MountableHeight: 9.40" (238.76 mm)
Width: 23.60" (599.44 mm)
Depth: 19.30" (490.22 mm)
Weight (Approximate): 63.30 lb (28712.40 g)
Miscellaneous
Application/Usage:
EducationCorporateClass RoomMeetingRoomAuditoriumPackage Contents:
- 17,000-Lumen Professional Installation Projector with 4K Support
- Remote control
- Batteries
- Power cord
- Lens hole cap
- User Manual(Web download)
- Installation Manual(Web download)
- Quick Start Guide
- Product registration card
- Security Sticker
Warranty
Limited Warranty: 5 Year
Additional Warranty Information:
Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.
