Description:
General Information
Manufacturer: Lantronix, Inc
Manufacturer Part Number: C32101014
Brand Name: Transition Networks
Product Line: ION
Product Series: C3210
Product Model: C3210-1014

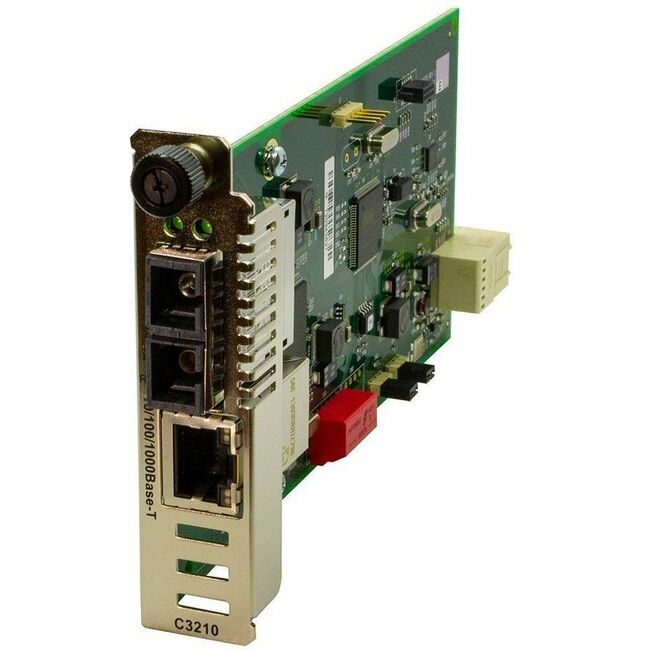

Product Name: ION C3210-1014 Transceiver/Media Converter
Marketing Information:
The ION C3210 is a media converter module that provides an interface between 10/100/1000Base-T ports and 1000Base-SX/LX ports, allowing users to integrate fiber optic cabling into 10/100/1000 copper environments. Operating at Layer 2, the data link layer, this converter not only converts copper to fiber, it also provides rate conversion allowing legacy 10/100 copper devices to connect to 1000Base-SX/LX fiber. The ION C3210 is a manageable device when installed in a managed ION chassis.
Product Type: Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports: 2
Network (RJ-45): Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 1
SC Port Type: Duplex
Media & Performance
Media Type Supported: Optical FiberTwisted PairFiber Mode Supported: Single-mode
Fiber Optic Cable Wavelength: 1310 nm
Maximum Data Transfer Rate: 1000 Mbit/s
Maximum Distance Supported: 10 km (6.21 Mile)
Network & Communication
Ethernet Technology: Gigabit Ethernet
Network Technology: 10/100/1000Base-T1000Base-LXPower Description
Power Source: DC
Power Consumption: 3.60 W
Physical Characteristics
Height: 3.40" (86.36 mm)
Width: 0.86" (21.84 mm)
Depth: 6.50" (165.10 mm)
Weight (Approximate): 1 lb (453.59 g)
Miscellaneous
TAA Compliant: Yes
