Description:
General Information
Manufacturer: CommScope, Inc
Manufacturer Part Number: ICX8200-C08PF
Brand Name: RUCKUS
Product Series: ICX 8200

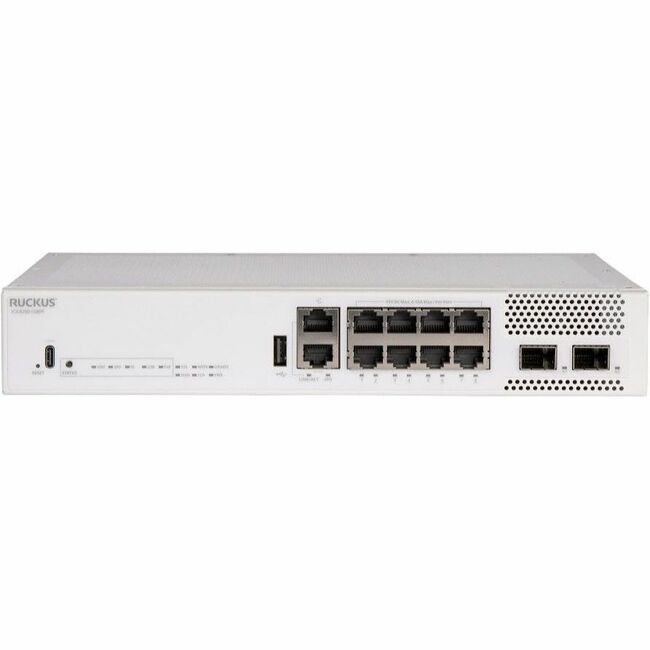

Product Name: ICX 8200 Ethernet Switch
Marketing Information:
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.
Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room
- Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.
- 8, 24 and 48 Gigabit Ethernet ports
- Up to 24x 1/2.5G Multigigabit RJ45 ports
- Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports
- Up to 48x 1G SFP fiber ports
- Up to 24x 10G SFP+ fiber ports
Power next generation APs and PoE devices
- PoE+ 802.3at, 30W per port on all ports · PoE++ 802.3bt, 60/90W on multigigabit ports
- Up to 1480W PoE budget with two power supplies
25 GbE uplinks/stacking for maximum performance and future-proofing
- Stacking comes standard with all ICX 8200
- Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
Enhanced Security and data privacy
- VXLAN support for advanced network segmentation and data confidentiality
Advanced L3 routing delivers network design flexibility
- IPv4 and IPv6 L3 routing
- Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
Broad range of unified management options for maximum flexibility
- On Premises: SmartZone
- Cloud Based: RUCKUS Cloud
- Controllerless: RUCKUS Unleashed
- RUCKUS Analytics
Enhanced availability
- Redundant, load-sharing power supplies and fans on specific models
Services and Support Included
- 3 Years remote TAC support included with every ICX 8200 model
- Limited lifetime warranty
Product Type: Ethernet Switch
Technical Information
Features: Fanless
Interfaces/Ports
Total Number of Network Ports: 8
Network (RJ-45): Yes
Uplink Port: Yes
Port/Expansion Slot Details: 2 x 10 Gigabit Ethernet Expansion Slot8 x Gigabit Ethernet PoE+Media & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet10 Gigabit EthernetNetwork Technology: 10/100/1000Base-T10GBase-XI/O Expansions
Total Number of Expansion Slots: 2
Expansion Slot Type: SFP+
Number of SFP+ Slots: 2
Network & Communication
Layer Supported: 3
Networking Standards: IEEE 802.3atIEEE 802.3azIEEE 802.1AXIEEE 802.1wIEEE 802.3adIEEE802.3afIEEE 802.1abIEEE 802.1pIEEE 802.3IEEE 802.1xIEEE 802.1sIEEE 802.3aeIEEE 802.1DIEEE 802.3abIEEE 802.3btIEEE 802.3zIEEE 802.3bzIEEE 802.3xIEEE 802.1QIEEE 802.1brIEEE 802.3uManagement & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 124 W
Input Voltage: 230 V AC120 V ACPower Source: ACPoE+Power SupplyPlug/Connector Type: C14
Physical Characteristics
Form Factor: Wall MountableRack-mountableDIN Rail MountableHeight: 1.73" (43.94 mm)
Width: 10.63" (270 mm)
Depth: 8.42" (213.87 mm)
Weight (Approximate): 5 lb (2270 g)
Miscellaneous
TAA Compliant: Yes
