Description:
General Information
Manufacturer: CommScope, Inc
Manufacturer Part Number: ICX8200-48PF2-E2
Brand Name: RUCKUS
Product Series: ICX 8200
Product Model: ICX 8200PF2

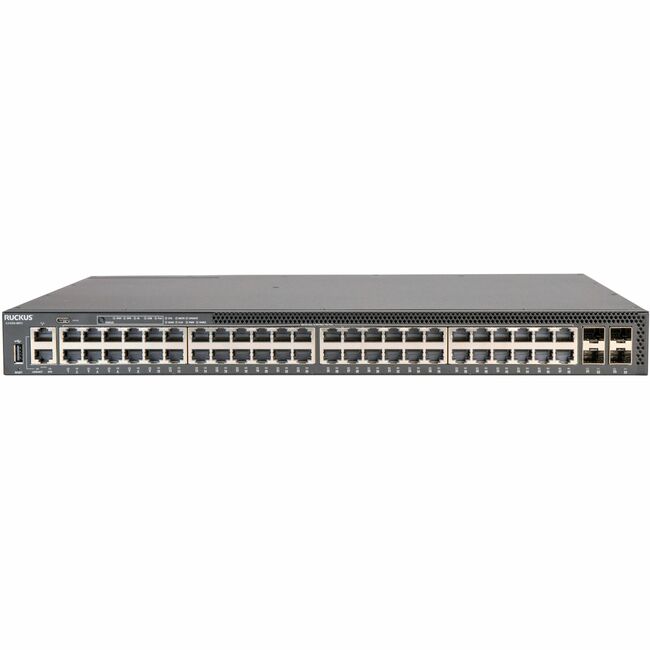

Product Name: ICX 8200PF2 Ethernet Switch
Marketing Information:
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability.
The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.
Benefits | Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room
- Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.
- 8, 24 and 48 Gigabit Ethernet ports
- Up to 24x 1/2.5G Multigigabit RJ45 ports
- Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports
- Up to 48x 1G SFP fiber ports · Up to 24x 10G SFP+ fiber ports
Power next generation APs and PoE devices
- PoE+ 802.3at, 30W per port on all ports
- PoE++ 802.3bt, 60/90W on multigigabit ports
- Up to 1480W PoE budget with two power supplies 25 GbE uplinks/stacking for maximum performance and future-proofing
- Stacking comes standard with all ICX 8200
- Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
Enhanced Security and data privacy
- VXLAN support for advanced network segmentation and data confidentiality
Advanced L3 routing delivers network design flexibility
- IPv4 and IPv6 L3 routing
- Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
Broad range of unified management options for maximum flexibility
- On Premises: SmartZone
- Cloud Based: RUCKUS Cloud
- Controllerless: RUCKUS Unleashed
- RUCKUS Analytics
Enhanced availability
- Redundant, load-sharing power supplies and fans on specific models
Product Type: Ethernet Switch
Technical Information
Data Link Protocols: HTTPHTTPSFeatures: Hot-swappableEnergy EfficientIn-Service Software Upgrade (ISSU)DHCP SnoopingAccess Control ListInterfaces/Ports
Total Number of Network Ports: 48
Network (RJ-45): Yes
Uplink Port: Yes
Stack Port: Yes
Port/Expansion Slot Details: 48 × 10/100/1000BASE-T Gigabit Ethernet PoE+ RJ-45 Network Port4 × 25 Gigabit Ethernet SFP28 Expansion Slot1 x RJ-45 Ethernet Out-of-Band Management Port1 x USB Type-C Console Port1 x RJ-45 Serial Console Port1 x USB PortMedia & Performance
Media Type Supported: Twisted PairOptical FiberEthernet Technology: Gigabit Ethernet10 Gigabit Ethernet25 Gigabit EthernetNetwork Technology: 10/100/1000Base-T1000Base-X10GBase-X25GBase-XMaximum Data Transfer Rate: 3.13 GB/s
I/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFPSFP+SFP28Network & Communication
Layer Supported: 3
Networking Standards: IEEE 802.1abIEEE 802.1DIEEE 802.1pIEEE 802.1sIEEE 802.1wIEEE 802.1xIEEE 802.3IEEE 802.3abIEEE 802.3adIEEE 802.1AXIEEE 802.3aeIEEE 802.3afIEEE 802.3atIEEE 802.3bzIEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.1QIEEE 802.1brIEEE 802.3azIEEE 802.3btManagement & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 1.44 kW
Input Voltage: 120 V AC230 V ACPower Source: PoEPoE+ACPower SupplyPoE++Redundant Power Supply Supported: Yes
Number of Power Supplies Installed: 2
Power Consumption: 1667 W
Plug/Connector Type: C14
Physical Characteristics
Compatible Rack Unit: 1U
Form Factor: Rack-mountable
Height: 1.73" (43.94 mm)
Width: 17.32" (439.93 mm)
Depth: 14.57" (370.08 mm)
Weight (Approximate): 14.09 lb (6390 g)
Miscellaneous
Package Contents:
- ICX 8200PF2 Ethernet Switch
- 2 x Power Supplies
- 2 x Front-to-Back Fans
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)Waste Electrical and Electronic Equipment Directive (WEEE)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Battery DirectiveTAA Compliant: Yes
Warranty
Limited Warranty: Lifetime
Additional Warranty Information:
- Three-year remote TAC support
