Description:
General Information
Manufacturer: CommScope, Inc
Manufacturer Part Number: ICX8200-48PF
Brand Name: RUCKUS
Product Series: ICX 8200
Product Model: ICX8200-48PF

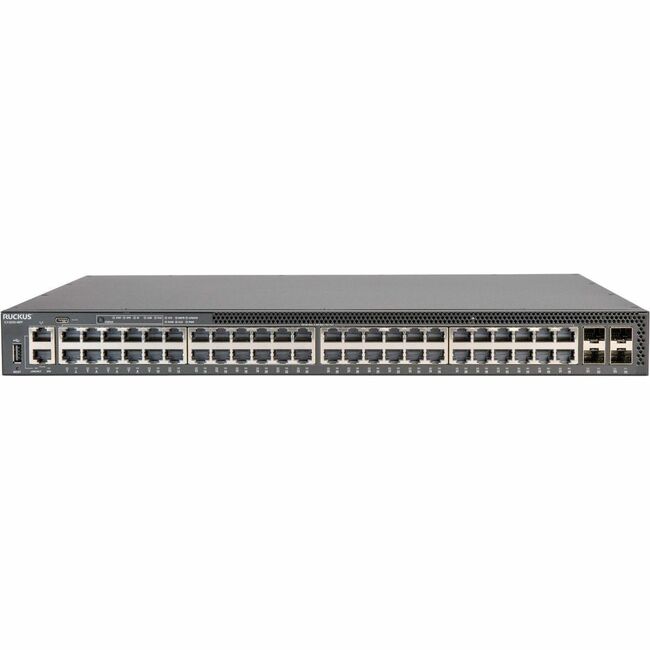

Product Name: ICX8200-48PF Ethernet Switch
Marketing Information:
The RUCKUS ICX 8200 Switch series is purposely designed to handle next generation wireless first and IoT campus networks. These intelligent, scalable edge switches deliver enterprise-class functionality at an affordable price without compromising performance and reliability. The RUCKUS ICX 8200 raises the bar with up to 8× 25 GbE ports for uplinks or stacking, PoE++ (802.3bt), VXLAN, advanced L2/L3 features and market-leading stacking density with up to 12 switches per stack. In addition, the RUCKUS ICX 8200 combines enterprise-class features, manageability, performance, and reliability with the flexibility, costeffectiveness, and "pay as you grow" scalability of stackable solution.
Benefits | Maximum flexibility: Gigabit, Multigigabit edge ports and Fiber to the Room
- Optimized for latest generation Wi-Fi 6/6E/7 AP deployments with multigigabit ports.
- 8, 24 and 48 Gigabit Ethernet ports
- Up to 24x 1/2.5G Multigigabit RJ45 ports
- Up to 4× 1/2.5/5/10 Gbps Multigigabit RJ-45 ports
- Up to 48x 1G SFP fiber ports
- Up to 24x 10G SFP+ fiber ports
Power next generation APs and PoE devices
- PoE+ 802.3at, 30W per port on all ports
- PoE++ 802.3bt, 60/90W on multigigabit ports
- Up to 1480W PoE budget with two power supplies
- 25 GbE uplinks/stacking for maximum performance and future-proofing
- Stacking comes standard with all ICX 8200
- Up to 8x 1/10/25GbE SFP28 fiber ports for uplink and/or stacking
Enhanced Security and data privacy
- VXLAN* support for advanced network segmentation and data confidentiality
Advanced L3 routing delivers network design flexibility
- IPv4 and IPv6 L3 routing
- Static routes, RIP, OSPF, VRRP, VRF, GRE, PIM, PBR
Broad range of unified management options for maximum flexibility
- On Premises: SmartZone
- Cloud Based: RUCKUS Cloud
- Controllerless: RUCKUS Unleashed
- RUCKUS Analytics
Enhanced availability
- Redundant, load-sharing power supplies and fans on specific models
Services and Support Included
Product Type: Ethernet Switch
Technical Information
Data Link Protocols: HTTPHTTPSFeatures: FanlessIn-Service Software Upgrade (ISSU)Hot-swappableDHCP SnoopingAccess Control ListEnergy EfficientInterfaces/Ports
Total Number of Network Ports: 48
Uplink Port: Yes
Stack Port: Yes
Port/Expansion Slot Details: 48 x Gigabit Ethernet PoE+4 × 25 Gigabit Ethernet SFP28 Stacking/ Uplink-PortsMedia & Performance
Media Type Supported: Optical FiberTwisted PairEthernet Technology: 25 Gigabit EthernetGigabit EthernetNetwork Technology: 25GBase-X10/100/1000Base-TI/O Expansions
Total Number of Expansion Slots: 4
Expansion Slot Type: SFP28
Network & Communication
Layer Supported: 3
Networking Standards: IEEE 802.1abIEEE 802.1DIEEE 802.1pIEEE 802.1wIEEE 802.1sIEEE 802.1xIEEE 802.3IEEE 802.3abIEEE 802.3adIEEE 802.1AXIEEE 802.3aeIEEE802.3afIEEE 802.3atIEEE 802.3bzIEEE 802.3uIEEE 802.3xIEEE 802.3zIEEE 802.1QIEEE 802.1brIEEE 802.3azIEEE 802.3btManagement & Protocols
Manageable: Yes
Power Description
PoE (RJ-45) Port: Yes
PoE Budget: 740 W
Input Voltage: 120 V AC230 V ACPower Source: Power SupplyAC/DCPoEPower Consumption: 854 W
Plug/Connector Type: C14
Physical Characteristics
Form Factor: Rack-mountableWall MountableDIN Rail MountableHeight: 1.73" (44 mm)
Width: 17.32" (440 mm)
Depth: 14.57" (370 mm)
Weight (Approximate): 12.15 lb (5510 g)
Miscellaneous
Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Restriction of Hazardous Substances (RoHS)Warranty
Limited Warranty: Lifetime
Additional Warranty Information:
Three-year remote TAC support
