General Information

---

Manufacturer: Shuttle, Inc
Manufacturer Part Number: SH510R4
Brand Name: Shuttle
Product Line: XPC cube
Product Model: SH510R4

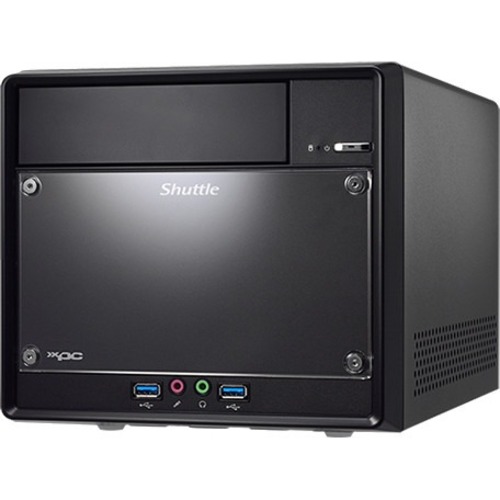

Product Name: BAREBONE XPC cube SH510R4
Marketing Information: ENTRY-LEVEL PLATFORM FOR INTEL' S 10 TH /11 TH -GEN. CPU S

The Shuttle XPC cube Barebone SH510R4 supports the 10th and 11th generation of Intel Core desktop processors for socket LGA1200, up to 64 GB DDR4-3200 memory, two 4K displays at 60 Hz via DisplayPort and HDMI 2.0, high-performance M.2 SSDs and up to four USB 3.2 devices. The SH510R4 can be expanded with a high-performance graphics card for demanding applications while the second PCIe-X1-slot can be used for other expansion cards. WLAN and COM port can be additionally installed as well. The SH510R4 comes with a built-in 80 PLUS power supply and Shuttle's I.C.E. heatpipe cooling which means it is en- ergy-efficient and ready for long-term operation. For a personal look and feel, the front panel can be customised by adding individual designs.
Product Type: Barebone System

Processor

---

Number of Processors Supported: 1
Processor Socket: Socket LGA-1200
Processor Supported:

Core i9

Core i7

Core i5

Core i3

Pentium Gold

Celeron

Chipset

---

Chipset Manufacturer: Intel
Chipset Model: H510

Memory

---

Maximum Memory Supported: 64 GB
Memory Technology: DDR4 SDRAM
Memory Standard: DDR4-3200/PC4-25600
Total Number of Memory Slots: 2

Controllers

---

Controller Type: Serial ATA/600

Display & Graphics

---

Graphics Controller Model: UHD Graphics
Graphics Memory Technology: DDR4 SDRAM
Graphics Memory Accessibility: Shared

Network & Communication

---

Ethernet Technology: Gigabit Ethernet

I/O Expansions

---

Number of Total Expansion Bays: 3
Number of External 5.25" Bays: 1
Number of 3.5" Bays: 2
Total Number of Expansion Slots: 2
Number of PCI Express x8 Slots: 1

Interfaces/Ports

---

HDMI (Rear): Yes
Total Number of USB Ports: 9
Number of USB 3.2 Gen 1 Ports: 4
Number of Onboard USB 2.0 Ports: 1
Number of SATA Interfaces: 3
Number of VGA Ports: 1

Operating System

---

Operating System Supported:

Windows 10

Windows 11

Linux

Power Description

---

Input Voltage:

120 V AC

230 V AC

Maximum Power Supply Wattage: 300 W

Physical Characteristics

---

Color Family: Black
Product Color: Black Aluminum
Height: 7.48" (190 mm)
Width: 8.50" (216 mm)
Depth: 12.95" (329 mm)
Weight (Approximate): 7.50 lb (3400 g)

Miscellaneous

---

Energy Star: Yes
