General Information

---

Manufacturer: Black Box Corporation
Manufacturer Part Number: LHC014A-R4
Brand Name: Black Box
Product Line: Multipower Miniature

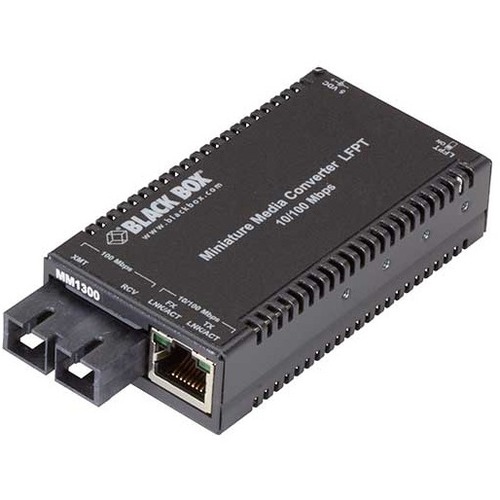

Product Name: MultiPower Miniature Transceiver/Media Converter
Marketing Information: Bring fiber to the desktop more conveniently and at a lower cost than installing fiber NICs.

Black Box® Multipower Miniature Media Converters make it easy to bring fiber to the desktop. Just connect a Miniature Media Converter to your PC's copper port with a CAT5 cable, then connect a fiber cable to the converter's other side. That's all there is to it! Best of all, you can tuck these tiny converters unobtrusively behind your PC.

The converters not only link 10- and 100-Mbps segments to fiber cabling, they also work as data rate converters, performing 10/100 autonegotiation on the twisted-pair port.

Choose from multimode duplex, single-mode duplex, and single-mode single-strand duplex fiber versions.

For extra versatility, you can power the Multipower Miniature Media Converter one of three ways: through the external AC power supply included with each converter, through the optional USB Power Adapter Cable (LHC021A), which plugs into a PC's USB port and is sold separately, or through the optional rackmount PowerTray (LHC018A-AC-R2).

Media Converter Fast Ethernet Multimode 1300nm 2km SC. 10/100Mbps copper to 100Mbps fiber. Typical Enterprise applications include LAN extension, fiber mode conversion, or Ethernet speed conversion. These media converters feature a small metal enclosure that can be used stand alone or inserted into a high density rack mount chassis, LHC018A-AC-R2. Converters include an external 100-240VAC power adapter with US and Europe plug clips. Converters may also be powered from a USB port using the LHC021A USB power cable. The LHC018A-AC-R2 chassis is 1.5U high, has slots for up to 18 media converters, and includes a 100-240VAC power supply. The media converters are unmanaged, plug and play with no configuration.
Product Type: Transceiver/Media Converter

Interfaces/Ports

---

Total Number of Ports: 3
Network (RJ-45): Yes
USB: Yes
Number of Network (RJ-45) Ports: 1
Number of SC Ports: 2
SC Port Type: Duplex

Media & Performance

---

Media Type Supported:

Optical Fiber

Twisted Pair

Fiber Mode Supported: Multi-mode
Fiber Optic Cable Wavelength: 1300 nm
Maximum Distance Supported: 2 km (1.24 Mile)
Fiber Optic Cable Core/Cladding Specification:

50/125 µm

62.5/125 µm

Network & Communication

---

Ethernet Technology: Fast Ethernet
Network Technology:

100Base-T

100Base-X

Power Description

---

Power Source: Power Adapter

Physical Characteristics

---

Form Factor:

Rack-mountable

Standalone

DIN Rail Mountable

Height: 1" (25.40 mm)
Width: 2" (50.80 mm)
Depth: 4.70" (119.38 mm)
Weight (Approximate): 1.20 lb (544.31 g)

Miscellaneous

---

Package Contents:

• MultiPower Miniature Transceiver/Media Converter
• External 100-240-VAC, 50-60-Hz Adapter

Environmentally Friendly: Yes
Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)

Restriction of Hazardous Substances (RoHS)

Country of Origin: Taiwan
TAA Compliant: Yes

Warranty

---

Limited Warranty: 6 Year
